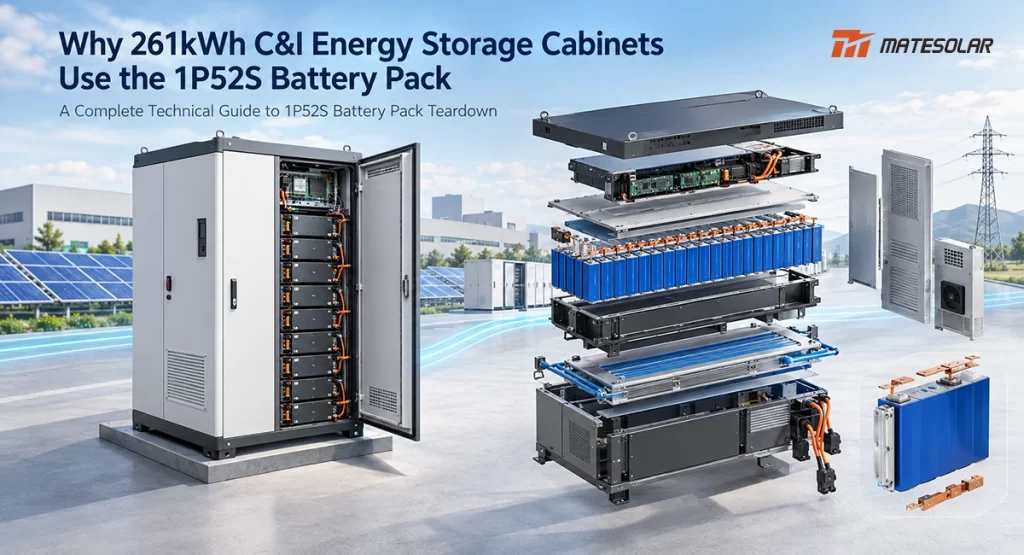

Why 261kWh C&I Energy Storage Cabinets Use the 1P52S Battery Pack: A Complete Technical Guide to 1P52S Battery Pack Teardown

Inside the Standard Configuration That Defines Commercial and Industrial Energy Storage in 2026 — Architecture, Engineering Rationale, Component Teardown, and Competitive Analysis

The 261kWh liquid-cooled energy storage cabinet has become the de facto standard for commercial and industrial (C&I) battery energy storage systems (BESS) in 2026. Whether you examine products from Tier-1 Chinese manufacturers, European integrators, or North American suppliers, the 261kWh capacity point and the 1P52S battery pack configuration appear with striking consistency. This convergence is not accidental. It represents the resolution of multiple engineering constraints — PCS DC voltage windows, cell form factor standardization, thermal management requirements, and logistics optimization — into a single configuration that delivers the best balance of performance, safety, and cost for the C&I segment.

This guide provides a complete technical analysis of the 1P52S battery pack: its architecture, the engineering rationale behind its selection, a detailed component-level teardown, comparison with alternative configurations, thermal management considerations, safety design, and the economic factors that make it the industry standard. Whether you are a project developer, an EPC contractor, a technical procurement manager, or an industrial facility operator evaluating BESS options, this document provides the definitive reference for understanding why 261kWh and 1P52S are inseparable in today's C&I energy storage market.

Part 1: What Is 1P52S? The Basic Architecture Explained

1.1 Definition and Nomenclature

The designation "1P52S" describes the electrical topology of a battery pack. The "P" stands for parallel, and the "S" stands for series. In the 1P52S configuration, 52 individual battery cells are connected in series, with no parallel connections within the pack. This means the pack has a single series string of 52 cells.

Each cell in the 1P52S pack is a lithium iron phosphate (LFP) prismatic cell with a nominal voltage of 3.2V and a capacity of 314Ah. These 314Ah cells have become the dominant choice for C&I and utility-scale stationary storage due to their optimal balance of energy density, cycle life, safety, and cost.

1.2 Voltage and Capacity Calculations

The electrical parameters of the 1P52S pack derive directly from its series configuration:

Nominal Pack Voltage:

3.2V (cell nominal voltage) × 52 (cells in series) = 166.4Vdc

Nominal Pack Capacity:

314Ah (cell capacity, since there is only one parallel string)

Nominal Pack Energy:

166.4Vdc × 314Ah = 52.25kWh

Operating Voltage Range:

With a typical LFP cell operating voltage range of 2.5V to 3.65V, the pack voltage range is:

• Minimum: 2.5V × 52 = 130Vdc

• Maximum: 3.65V × 52 = 189.8Vdc

System Configuration for 261kWh:

Five 1P52S packs connected in series:

• System nominal voltage: 166.4V × 5 = 832Vdc

• System energy: 52.25kWh × 5 = 261.25kWh

• System designation: 1P260S (5 packs × 52 cells)

1.3 Why the 261kWh Capacity Point?

The 261kWh capacity point emerges naturally from the 1P52S configuration. Each pack delivers approximately 52.25kWh. Five packs in series yield 261.25kWh. This configuration aligns precisely with the DC voltage requirements of string-type PCS units commonly deployed in C&I applications.

The relationship between pack configuration, system voltage, and PCS compatibility is summarized in the following table:

Source: Industry standard specifications for 261kWh liquid-cooled C&I cabinets

Part 2: The Engineering Rationale — Why 1P52S?

2.1 PCS DC Voltage Window Constraint

The single most important engineering driver behind the 1P52S configuration is the DC voltage window of string-type PCS units used in C&I applications.

For a string-type PCS with a 400Vac AC output, the DC-side voltage range is typically 600Vdc to 1000Vdc. The BESS must operate entirely within this window to achieve full charge and discharge capability without the PCS clipping or shutting down.

The 1P52S configuration, with five packs in series, produces a voltage range of 650Vdc to 949Vdc (based on cell voltage range of 2.5V to 3.65V). This range sits comfortably within the 600–1000Vdc PCS window, allowing full depth of discharge and full state of charge without PCS operational limitations.

Consider the alternatives:

• A 4-pack series configuration (1P208S) would produce a voltage range of approximately 520–759Vdc, which falls below the PCS minimum of 600Vdc at the low end, preventing full discharge.

• A 6-pack series configuration (1P312S) would produce a voltage range of approximately 780–1139Vdc, which exceeds the PCS maximum of 1000Vdc at the high end, preventing full charge.

The 5-pack configuration is the only series count that fully utilizes the PCS voltage window without exceeding either boundary.

2.2 Comparison of Pack Configurations

Source: Eneroc liquid-cooled pack specifications; industry standard configurations

The table reveals why 1P52S is the only configuration that produces an integer number of packs for the 261kWh target while maintaining PCS compatibility. The 1P48S configuration would require 5.4 packs, which is not a valid integer series count. The 1P104S configuration, while offering higher energy density per pack, requires only 2.5 packs for 261kWh — again, not an integer.

2.3 The 0.5P Charge/Discharge Rate Standard

C&I BESS systems are almost universally specified at a 0.5P charge/discharge rate. For a 261kWh system, this corresponds to a power rating of approximately 130kW. The 125kW PCS commonly paired with 261kWh cabinets operates at slightly below 0.5P, providing a conservative operating margin.

The 0.5P rate aligns with the capabilities of 314Ah LFP cells, which are optimized for energy applications rather than high-power applications. At 0.5P, a 314Ah cell delivers 157A of charge or discharge current, well within its safe operating envelope.

2.4 Cell Format Standardization

The 314Ah prismatic LFP cell has achieved industry-wide standardization in dimensions, performance characteristics, and manufacturing processes. This standardization is the result of a multi-year evolution from 280Ah cells, which dominated the market through 2023-2024.

The 314Ah cell offers approximately 12% higher capacity than the 280Ah cell in the same physical form factor, enabling higher energy density without changing pack dimensions or manufacturing equipment. This backward compatibility was a critical enabler of the rapid industry transition to 314Ah cells and the 1P52S configuration.

Part 3: 1P52S Battery Pack Teardown — Component-by-Component Analysis

3.1 Pack Architecture Overview

A 1P52S battery pack is constructed from two 1P26S modules connected in series. Each module contains 26 cells in series. This modular construction simplifies manufacturing, testing, and maintenance.

The major components of the 1P52S pack are:

Source: Industry teardown analysis; manufacturer technical documentation

3.2 The CCS (Cell Connection System)

The CCS (Cell Connection System) serves two critical functions: it connects the cells electrically and it acquires cell voltage signals for the BMS.

In modern 1P52S packs, the CCS is typically implemented using FPC (Flexible Printed Circuit) technology or a combination of FPC and FFC (Flexible Flat Cable). The FPC replaces traditional wire harnesses and busbars with a single integrated component that provides:

• Voltage sensing: Each cell's voltage is routed to the BMU through the FPC

• Temperature sensing: NTC thermistors are integrated into the FPC at strategic locations

• Structural integration: The FPC provides some mechanical support for the cell interconnections

The FPC approach reduces assembly complexity, improves reliability by eliminating wire connections, and enables automated manufacturing.

3.3 The BMU (Battery Management Unit)

The BMU is the brain of the battery pack. It receives signals from the CCS, processes them into digital data, and communicates with the higher-level BMS.

Key BMU functions include:

• Cell voltage monitoring: All 52 cell voltages are measured and reported

• Temperature monitoring: NTC sensors provide pack temperature data

• Passive balancing: The BMU can discharge individual cells through bleed resistors to equalize state of charge across the pack

• Fault detection: Overvoltage, undervoltage, overcurrent, and overtemperature conditions are detected and reported

• Communication: The BMU communicates with the system BMS via CAN or RS485

The passive balancing capability is particularly important for the 1P52S configuration. Because all 52 cells are in series, any imbalance between cells directly reduces the usable capacity of the pack. The "wooden barrel effect" — where the weakest cell determines the pack's capacity — must be actively managed through balancing.

3.4 The Liquid Cooling Plate

The liquid cooling plate is a defining feature of modern 1P52S packs. In liquid-cooled designs, the cooling plate is integrated into the pack's bottom structure, with a serpentine channel through which coolant flows.

The cooling plate maintains cell temperature uniformity within ±3°C across the pack. This temperature consistency is critical for several reasons:

• Cycle life: LFP cells degrade faster at elevated temperatures. Maintaining uniform temperature avoids localized hot spots that accelerate aging.

• Capacity consistency: Temperature gradients across cells cause differential self-discharge rates, leading to imbalance.

• Safety: Uniform cooling reduces the risk of thermal runaway initiation at hot spots.

The cooling plate is typically constructed from aluminum alloy for its combination of thermal conductivity, weight, and cost. The serpentine channel design maximizes the heat transfer surface area while maintaining acceptable pressure drop for the coolant circulation system.

3.5 The MSD (Manual Service Disconnect)

The MSD (Manual Service Disconnect) is a safety-critical component that is often misunderstood. It is the yellow, square connector with a pull handle located on the front of the pack, typically positioned between the two 1P26S modules.

Primary function: The MSD allows maintenance personnel to manually disconnect the battery pack from the system for safe servicing. When the MSD is removed, the pack voltage is divided: the voltage across the exposed terminals drops from 166.4V to approximately 83.2V (half the pack voltage), significantly reducing the risk of electric shock.

Short-circuit protection: The MSD incorporates a high-breaking-capacity fuse (typically kA-level) that provides millisecond-level protection against short circuits. The fuse rating must be coordinated with the cell's maximum short-circuit current and the main circuit's current-carrying capacity.

Interlock protection: During MSD insertion or removal, the auxiliary contacts open before the main power contacts. This signal is sent to the BMS, which immediately opens the main contactors in the high-voltage box. The main circuit is de-energized before the MSD contacts separate, eliminating arc flash risk.

The MSD's three-in-one design — manual disconnect, short-circuit protection, and interlock — makes it an essential safety component that should never be bypassed or substituted.

3.6 Module-Level Construction

Each 1P52S pack is built from two 1P26S modules. The module is the basic building block, containing 26 cells in series, the CCS for those cells, and a portion of the thermal management system.

The modular approach offers several advantages:

• Manufacturing efficiency: Modules can be assembled and tested independently before pack integration

• Serviceability: A failed module can be replaced without scrapping the entire pack

• Logistics: Modules are more easily transported and handled than complete packs

• Standardization: The same module design can be used in packs of different configurations

Part 4: 1P52S vs. Alternative Configurations

4.1 1P52S vs. 1P104S

The 1P104S configuration, which is more common in utility-scale containerized systems, offers higher integration density. A 1P104S pack contains 104 cells in series, producing:

• Nominal voltage: 332.8Vdc

• Nominal energy: 104.5kWh

Advantages of 1P104S:

• Fewer packs per system reduces enclosure and structural costs

• Higher energy density per unit volume

• Simpler system-level wiring

Disadvantages of 1P104S for C&I:

• Larger physical dimensions (1P104S packs are approximately 2× the size of 1P52S packs)

• Higher pack voltage requires more robust insulation and safety measures

• Cannot achieve the 261kWh standard configuration with an integer number of packs

• More difficult to handle and install without specialized equipment

For C&I applications where cabinet dimensions and logistics are constrained, the 1P52S configuration is preferred.

4.2 1P52S vs. 1P48S

The 1P48S configuration (48 cells in series, 153.6V nominal, 48.23kWh) was an earlier industry standard based on 280Ah cells. It has been largely superseded by 1P52S for several reasons:

• Voltage window mismatch: A 5-pack 1P48S system produces a voltage range of 600–876Vdc, which is narrower than the 1P52S 5-pack range and less optimized for the full PCS window

• Non-integer pack count: Achieving 261kWh with 1P48S packs requires 5.4 packs, which is not a valid integer series count

• Legacy technology: The 48-cell configuration was designed around 280Ah cells; the industry has standardized on 314Ah cells and the 52-cell configuration

4.3 Configuration Comparison Table

Source: Manufacturer specifications; industry standard configurations

Part 5: Thermal Management — The Liquid Cooling Advantage

5.1 Why Liquid Cooling for 1P52S?

The 1P52S configuration, with its relatively large number of cells in close proximity, demands effective thermal management. Air cooling, while simpler and lower cost, cannot maintain the temperature uniformity required for optimal LFP cell performance and longevity in C&I applications.

Liquid cooling offers several decisive advantages:

• Temperature uniformity: Liquid cooling maintains cell-to-cell temperature difference within ±3°C, compared to ±5-8°C for air cooling

• Higher heat transfer coefficient: Liquid coolants have 10-100× higher heat transfer coefficients than air

• Compact form factor: Liquid cooling plates are integrated into the pack structure, saving space compared to air cooling ducts and fans

• Noise reduction: Liquid cooling systems operate more quietly than air cooling fans

• Environmental sealing: Liquid-cooled packs can achieve IP67 rating, enabling outdoor installation in harsh environments

5.2 Temperature Impact on Cycle Life

The relationship between operating temperature and cycle life for LFP cells is well-established:

Source: LFP cell manufacturer data; industry research

A 10°C increase in operating temperature can reduce cycle life by 20-40%. For a BESS expected to operate for 15-20 years, maintaining optimal temperature is not optional — it is essential for achieving the warranted cycle life and protecting the investment.

5.3 Liquid Cooling System Architecture

The liquid cooling system in a 261kWh cabinet typically comprises:

• Coolant circulation pump: Circulates coolant through the loop

• Heat exchanger: Rejects heat to the ambient environment

• Cooling plates: Integrated into each 1P52S pack

• Expansion tank: Accommodates coolant thermal expansion

• Control valves: Regulate flow to different packs

• Temperature sensors: Monitor coolant and cell temperatures

The cooling system is controlled by the system EMS, which adjusts pump speed and cooling capacity based on real-time temperature data and operating conditions.

5.4 Thermal Runaway Prevention

While LFP chemistry is inherently safer than NMC, thermal runaway remains a consideration for any lithium-ion battery system. The 1P52S pack design incorporates multiple layers of thermal runaway prevention:

Cell-level: 314Ah LFP cells pass rigorous safety testing including nail penetration, overcharge, over-discharge, and thermal abuse tests.

Module-level: Thermal insulation materials between cells (aerogel, mica, or phase-change materials) slow or prevent heat propagation from a failing cell to adjacent cells. Research indicates that aerogel insulation of 1-2mm thickness can completely block thermal runaway propagation in LFP cell stacks.

Pack-level: The liquid cooling plate, in addition to its normal thermal management function, can absorb heat during a thermal event. Pack-level fire suppression systems (aerosol or water-based) provide active protection.

System-level: The cabinet enclosure provides physical separation between packs, and the system BMS monitors for thermal anomalies and initiates emergency shutdown if detected.

Part 6: Safety Design and Certification

6.1 Safety Standards Applicable to 1P52S Packs

The 1P52S pack must comply with multiple international safety standards depending on the target market:

Source: Certification body documentation; industry standards

6.2 UL 9540A Testing for 1P52S

UL 9540A is the primary test method for evaluating thermal runaway fire propagation in BESS. Testing is conducted across four levels: cell, module, unit, and installation.

For the module-level test — the most relevant level for the 1P52S pack — the standard requires:

• At least one cell must be forced into thermal runaway

• If thermal runaway does not propagate to adjacent cells, the number of trigger cells must be increased

• If an insulation layer is present between cells, the test must evaluate its effectiveness

A 1P52S pack that passes module-level UL 9540A testing demonstrates that thermal runaway within the pack can be contained and will not propagate to adjacent packs in the cabinet.

6.3 Cabinet-Level Safety Integration

The 1P52S packs are installed within a 261kWh cabinet that provides additional safety layers:

• Fire suppression: Cabinet-level aerosol or water-based suppression system

• Gas detection: Sensors for smoke, combustible gas, and temperature anomalies

• Pressure relief: Venting to prevent pressure buildup during a thermal event

• Structural separation: Physical barriers between packs to limit propagation

• Emergency shutdown: BMS-initiated contactor opening on fault detection

Part 7: Economic Analysis — Why 1P52S Makes Financial Sense

7.1 Cost Structure of a 261kWh Cabinet

The 261kWh liquid-cooled cabinet has become the standard C&I BESS form factor, and its cost structure reflects the maturity of the 1P52S supply chain:

Source: Industry cost analysis; manufacturer quotations

7.2 Market Pricing for C&I BESS in 2026

Current market benchmarks for C&I BESS pricing place installed costs in the following ranges:

Source: BESS Pricing Trends 2026, solartodo.com; TAOYAN C&I BESS Cost & ROI Guide

For a 261kWh cabinet with 125kW PCS, the turnkey installed cost typically falls in the range of $40,000 to $110,000, depending on scope, site conditions, and regional factors.

7.3 Revenue Stack for 261kWh C&I Systems

The economic case for 261kWh cabinets rests on multiple revenue streams:

Peak shaving and demand charge reduction: This is typically the primary revenue driver for C&I systems. A well-sized 261kWh system can reduce peak demand by 100-200kW, delivering monthly demand charge savings that vary by utility and tariff structure.

Energy arbitrage: Charging during low-price hours and discharging during high-price hours captures the spread between base and peak energy prices. For facilities on time-of-use tariffs, this spread can be $0.10–$0.30/kWh or more.

Backup power: The 261kWh system provides 2+ hours of backup power for critical loads during grid outages, protecting against production losses and equipment damage.

Demand response: In markets with demand response programs, the BESS can earn additional revenue by reducing load during grid stress events.

7.4 Illustrative Savings Calculation

Consider a commercial facility with the following characteristics:

• Maximum demand: 800kW

• Peak demand charge: $18/kW/month

• Average peak energy price: $0.25/kWh

• Average off-peak energy price: $0.08/kWh

• Daily peak period: 4 hours

A 261kWh BESS with 125kW PCS operating with optimized dispatch could achieve:

Illustrative example only. Actual savings depend on load profile, tariff structure, and dispatch optimization.

At an installed cost of approximately $65,000 for the complete system, the simple payback period would be approximately 1.2 years — a compelling return that explains the rapid adoption of 261kWh cabinets in the C&I segment.

7.5 Comparison with Alternative Capacities

Source: Industry pricing benchmarks; manufacturer data

The 261kWh capacity point offers the best combination of cost efficiency and application flexibility for the majority of C&I installations.

For facilities requiring larger capacity, parallel connection of multiple 261kWh cabinets provides flexible scaling. Up to 10 cabinets can typically be paralleled per site, enabling MWh-level installations without requiring custom engineering.

Part 8: Deployment and Installation Considerations

8.1 Physical Characteristics of a 261kWh Cabinet

Source: Manufacturer specifications

The compact footprint of approximately 1.5m² per cabinet makes the 261kWh system suitable for installations with limited space, including urban commercial buildings, industrial parks with constrained site boundaries, and existing electrical rooms.

8.2 Parallel Expansion

The modular architecture of the 261kWh cabinet enables straightforward parallel expansion:

• Factory pre-configured master unit: The first cabinet in a parallel group is configured as the master at the factory

• Self-networking: Additional cabinets auto-detect and synchronize with the master

• Up to 10 units per site: Enables scaling from 261kWh to 2.6MWh

• Load sharing: The EMS distributes charge/discharge commands across all units

• Redundancy: If one cabinet goes offline, the remaining units continue operating at reduced capacity

8.3 Site Requirements

The 261kWh cabinet requires minimal site preparation:

• Foundation: Concrete pad or level compacted surface

• Clearance: Minimum 800mm front clearance for maintenance access

• Cable routing: Trenches or overhead trays for AC and communication cables

• Ventilation: Natural ventilation is sufficient for most installations

• Grounding: Standard grounding electrode system

8.4 Installation and Commissioning

The factory-integrated design of the 261kWh cabinet reduces on-site installation time and complexity. The system arrives pre-assembled and pre-commissioned, with only the AC connections, communication cables, and grounding requiring field installation.

For large-scale commercial and industrial projects, technical support for commissioning and debugging can be arranged to ensure proper system integration and optimal performance. This support includes software configuration, EMS parameter optimization, and verification of protection settings.

Part 9: Frequently Asked Questions

Q1: What does 1P52S mean in a battery pack?

1P52S describes the electrical configuration: 1 parallel string of 52 cells connected in series. There is no parallel connection within the pack. This configuration produces a nominal voltage of 166.4V and a pack energy of approximately 52.25kWh when using 314Ah LFP cells.

Q2: Why do 261kWh cabinets use five 1P52S packs instead of other configurations?

Five 1P52S packs in series produce a system voltage range of 650–949Vdc, which aligns optimally with the 600–1000Vdc input window of string-type PCS units. This allows full charge and discharge without PCS clipping. The 261kWh capacity point is the natural result of this configuration.

Q3: Can 1P52S packs be connected in parallel?

Yes, but parallel connection is done at the system level, not within the pack. Multiple 261kWh cabinets (each containing five 1P52S packs in series) can be paralleled to achieve higher capacity. Up to 10 cabinets can typically be paralleled per site.

Q4: What is the function of the MSD in a 1P52S pack?

The MSD (Manual Service Disconnect) serves three functions: (1) manual disconnection of the pack for safe maintenance, reducing voltage from 166.4V to 83.2V; (2) short-circuit protection through an integrated high-breaking-capacity fuse; and (3) interlock protection that opens the main contactors before the MSD contacts separate, preventing arc flash.

Q5: How does liquid cooling benefit the 1P52S configuration?

Liquid cooling maintains cell temperature uniformity within ±3°C, compared to ±5-8°C for air cooling. This temperature consistency is critical for maximizing cycle life, maintaining capacity consistency, and reducing thermal runaway risk. Liquid cooling also enables IP67 sealing for outdoor installation.

Q6: What cycle life can be expected from a 1P52S pack with 314Ah LFP cells?

With proper thermal management and operating at 0.5P charge/discharge rate, 25°C ambient temperature, and 90% depth of discharge, 314Ah LFP cells typically deliver 8,000–12,000 cycles to 70% state of health. Some manufacturers are now offering cells with 15,000-cycle capability using pre-lithiation technology.

Q7: Is the 1P52S configuration compatible with all PCS brands?

The 1P52S configuration produces a DC voltage range of 650–949Vdc, which is compatible with most string-type PCS units designed for 400Vac output. However, the specific voltage window should always be verified against the PCS manufacturer's specifications before system integration.

Q8: What certifications should a 1P52S pack have?

For global market access, a 1P52S pack should have IEC 62619 (safety for industrial batteries), UL 1973 (stationary battery safety), and UL 9540A test evidence (thermal runaway propagation). For specific markets, additional certifications such as CE, UN 38.3 (transportation), and GB/T 36276 (China) may be required.

Q9: How does the 1P52S pack handle cell imbalance?

The BMU implements passive balancing, which discharges higher-voltage cells through bleed resistors to equalize state of charge across the 52 cells. The balancing current is typically in the range of 100–200mA, sufficient to correct gradual imbalances that develop during normal operation.

Q10: What is the typical weight of a 1P52S pack?

A 1P52S pack with 314Ah LFP cells typically weighs approximately 330–340kg. This weight is manageable with standard forklifts and does not require specialized lifting equipment.

Q11: Can a 1P52S pack be repaired at the module level?

Yes. The 1P52S pack is constructed from two 1P26S modules. If a cell or module fails, the module can be replaced without scrapping the entire pack. This modular serviceability reduces repair costs and downtime.

Q12: What is the operating temperature range of a 1P52S pack?

With liquid cooling, the pack can operate in ambient temperatures from -25°C to 55°C. The liquid cooling system maintains optimal cell temperature regardless of ambient conditions, ensuring consistent performance and cycle life.

Q13: How does the 1P52S configuration compare to 1P104S for C&I applications?

The 1P104S configuration is optimized for utility-scale containerized systems where high energy density and reduced pack count are priorities. For C&I applications, the 1P52S configuration offers better handling characteristics (lower pack weight), more flexible system sizing, and optimal PCS voltage window alignment.

Q14: What is the typical round-trip efficiency of a 1P52S-based 261kWh system?

The DC round-trip efficiency of a 1P52S pack is typically 95–97%. At the system level, including PCS conversion losses, the AC round-trip efficiency is typically 88–90%, depending on operating conditions and load profile.

Q15: How many 1P52S packs are required for a 1MWh system?

A 1MWh system requires approximately 20 1P52S packs, configured as four 261kWh cabinets (each with five packs) connected in parallel. Alternatively, a containerized system with 1P104S packs could achieve 1MWh with 10 packs, but would require different PCS and system architecture.

Part 10: Conclusion — The 1P52S Standard and the Future of C&I Energy Storage

The 1P52S battery pack configuration has become the standard for 261kWh C&I energy storage cabinets through a process of engineering convergence. The 52-cell series configuration is the only topology that simultaneously satisfies the PCS DC voltage window, achieves the 261kWh capacity point with an integer number of packs, enables IP67 liquid-cooled sealing, and maintains manageable pack weight and dimensions.

As the C&I energy storage market continues to mature, the 1P52S standard is likely to persist. The emergence of 314Ah LFP cells as the industry standard, combined with the widespread adoption of string-type PCS units and liquid cooling, has created a stable technological equilibrium that benefits developers, integrators, and end users alike. Standardization reduces costs, simplifies procurement, accelerates project timelines, and improves reliability.

For project developers and industrial facility operators evaluating C&I BESS options, understanding the 1P52S configuration is essential. It is not merely a technical specification — it is the foundation of the 261kWh standard that defines the C&I energy storage market.

MateSolar is a one-stop photovoltaic and energy storage solutions provider, delivering integrated solar-plus-storage systems for commercial, industrial, and utility-scale applications. From the Commercial 500KW Hybrid Solar System for large C&I electricity consumers, to the 100kW/232kWh and 125kW/261kWh Liquid-Cooled Outdoor Cabinet Energy Storage System for standard C&I deployments, to the 40Ft 1MWh 2MWh Air-Cooled Container ESS Energy Storage System and 20ft 3MWh 5MWh Liquid Cooling Container Energy Storage System for scalable utility-scale projects, MateSolar provides the technology, expertise, and support to power the energy transition.

This document is for informational purposes only. Technical specifications and performance data vary by manufacturer and should be verified against specific product datasheets. All calculations are illustrative and intended for educational purposes.
