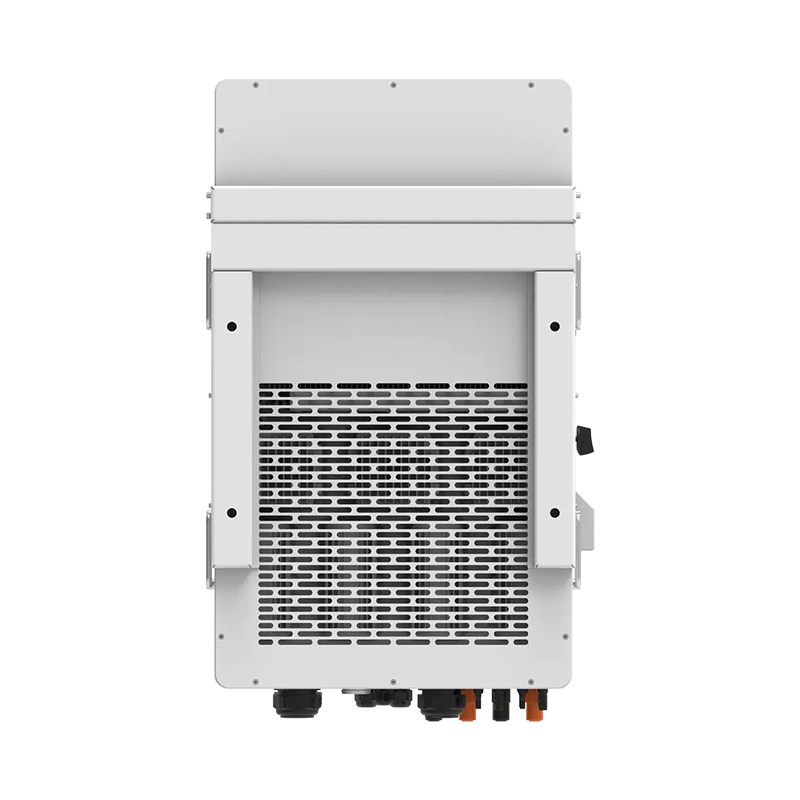

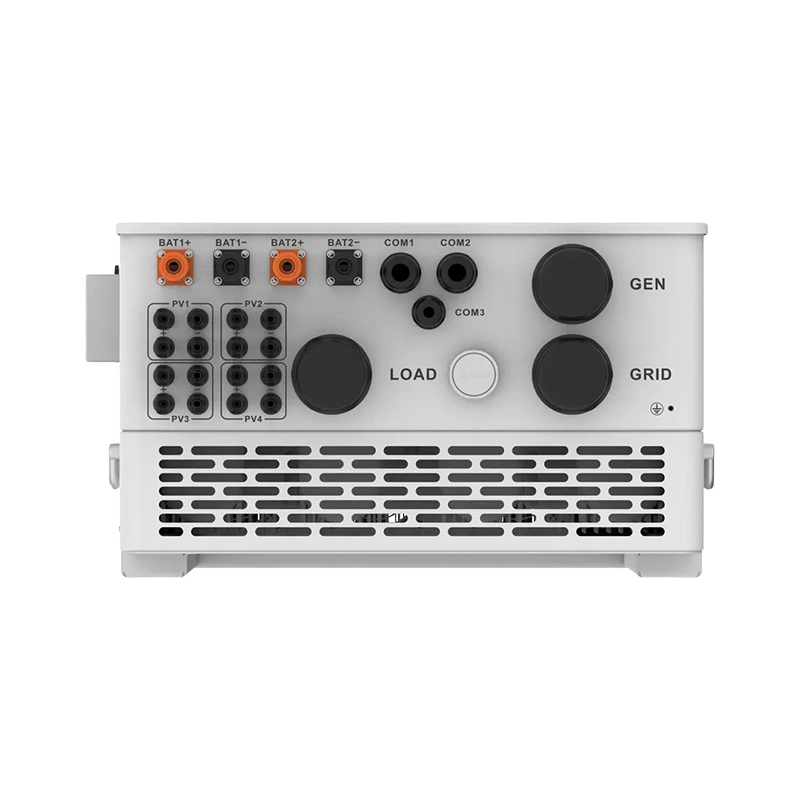

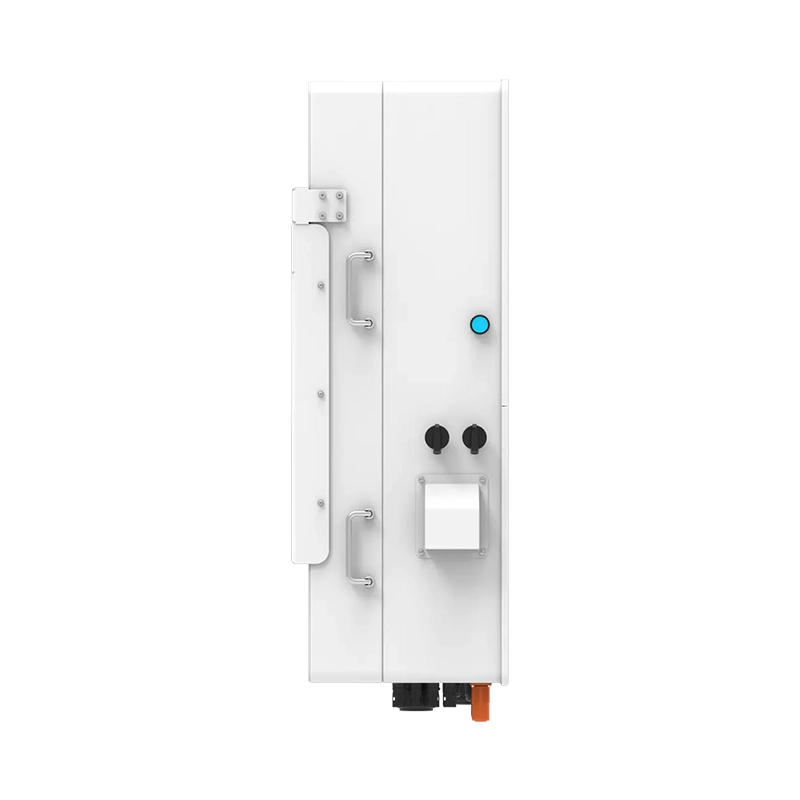

Three Phase Hybrid Inverter 30-50KW Support Diesel Generator

Share:

  • 30-50KW hybrid inverters ensure smooth integration of diesel generators, optimize efficiency and reliability, and achieve seamless power management.
  • The 30-50kW three-phase hybrid inverter seamlessly integrates diesel generators with advanced energy management to provide an efficient and reliable hybrid power solution.
  • The 30kW-50kW hybrid inverter improves the efficiency of three-phase diesel generator sets, achieving seamless energy integration and fuel savings.
  • The 30-50kW three-phase hybrid inverter enables seamless synchronization of diesel generators, providing an efficient and reliable hybrid power solution.
  • 30-50KW hybrid inverters ensure smooth integration of diesel generators, optimize efficiency and reliability, and achieve seamless power management.
  • The 30-50kW three-phase hybrid inverter seamlessly integrates diesel generators with advanced energy management to provide an efficient and reliable hybrid power solution.
  • The 30kW-50kW hybrid inverter improves the efficiency of three-phase diesel generator sets, achieving seamless energy integration and fuel savings.
  • The 30-50kW three-phase hybrid inverter enables seamless synchronization of diesel generators, providing an efficient and reliable hybrid power solution.
  • 1.100% Unbalanced Output per Phase
    Each phase supports 100% unbalanced output, with maximum output up to 50% of rated power.

    2.DC & AC Coupling for Retrofit
    Compatible with both DC and AC coupling, enabling seamless integration with existing solar systems.

    3.Scalable Parallel Configuration
    Supports up to 10 units in parallel for on-grid and off-grid operations, with compatibility for multiple battery connections.

    4.Advanced Battery Management
    Features a 48V low-voltage battery with transformer isolation, 240A max charging/discharging current, 6 programmable time periods for charging/discharging, and support for energy storage from diesel generators.
Download Inquire

FAQS

Q :

What does "100% unbalanced output per phase" mean, and what is the maximum output capability?

A :

Each phase can operate independently with 100% unbalanced output, supporting a maximum output of up to 50% of the system's rated power.

Q :

How does the system integrate with existing solar installations?

A :

It supports both DC and AC coupling, allowing seamless retrofitting of existing solar systems.

Q :

What scalability options are available for on-grid and off-grid operations?

A :

Up to 10 units can be connected in parallel for on-grid and off-grid use, with support for multiple battery connections to expand capacity.

Q :

What are the key features of the battery management system?

A :

The system includes a 48V low-voltage battery with transformer isolation, a max charging/discharging current of 240A, 6 programmable time periods for charging/discharging, and the ability to store energy from diesel generators.

Product Information

ModelSUN-29.9K-SG01HP3
-EU-BM3		SUN-30K-SG01HP3
-EU-BM3		SUN-35K-SG01HP3
-EU-BM3		SUN-40K-SG01HP3
-EU-BM4		SUN-50K-SG01HP3
-EU-BM4
Battery Input Data
Battery TypeLithium-ionLithium-ionLithium-ionLithium-ionLithium-ion
Battery Voltage Range (V)160-800160-800160-800160-800160-800
Max. Charging Current (A)50+5050+5050+5050+5050+50
Max. Discharging Current (A)50+5050+5050+5050+5050+50
Number of Battery Inputr22222
Charging Strategy for Li-Ion BatterySelf-adaption to BMSSelf-adaption to BMSSelf-adaption to BMSSelf-adaption to BMSSelf-adaption to BMS
PV String Input Data
Max. DC Input Power (W)3887039000455005200065000
Max. DC Input Voltage (V)10001000100010001000
Start-up Voltage (V)180180180180180
MPPT Range (V)150-850150-850150-850150-850150-850
Full Load DC Voltage Range (V)360-850360-850360-850360-850450-850
Rated DC Input Voltage (V)600600600600600
PV Input Current (A)36+36+3636+36+3636+36+3636+36+36+3636+36+36+36
Max. PV Isc (A)55+55+5555+55+5555+55+5555+55+55+5555+55+55+55
No.of MPP Trackers33344
No.of Strings per MPP Tracker2+2+22+2+22+2+22+2+2+22+2+2+2
AC Output Data
Rated AC Output Active Power (W)2990030000350004000050000
Max AC Output Active Power (W)2990033000385004400055000
Rated AC Output Current (A)45.4/43.445.5/43.553.1/50.860.7/5883.4/79.7
Max AC Output Current (A)45.4/43.450/47.858.4/55.866.7/63.883.4/79.7
Max. Three-phase Unbalanced Output Current (A)6060607083.3
Max. Continuous AC Passthrough (A)200200200200200
Peak Power (Off Grid)1.5 time of rated power, 10 S1.5 time of rated power, 10 S1.5 time of rated power, 10 S1.5 time of rated power, 10 S1.5 time of rated power, 10 S
Generator Input/Smart Load/AC Couple Current (A)45.4 / 200 / 45.445.5 / 200 / 45.553.1 / 200 / 53.160.7 / 200 / 60.775.8 / 200 / 75.8
Power Factor Adjustment Range0.8 lagging to 0.8 lagging0.8 lagging to 0.8 lagging0.8 lagging to 0.8 lagging0.8 lagging to 0.8 lagging0.8 lagging to 0.8 lagging
Output Frequency and Voltage50/60Hz; 3L/N/PE 220/380, 230/400Vac50/60Hz; 3L/N/PE 220/380, 230/400Vac50/60Hz; 3L/N/PE 220/380, 230/400Vac50/60Hz; 3L/N/PE 220/380, 230/400Vac50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid TypeThree PhaseThree PhaseThree PhaseThree PhaseThree Phase
Total Harmonic Distortion (THD)<3% (of nominal power)<3% (of nominal power)<3% (of nominal power)<3% (of nominal power)<3% (of nominal power)
DC Current Injection<0.5%1n<0.5%1n<0.5%1n<0.5%1n<0.5%1n
Efficiency
Max.Efficiency97.60%97.60%97.60%97.60%97.60%
Euro Efficiency97.00%97.00%97.00%97.00%97.00%
MPPT Efficiency99.90%99.90%99.90%99.90%99.90%
Protection
IntegratedAnti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection		Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection		Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection		Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection		Anti-islanding Protection, PV String Input Reverse Polarity Protection,
Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection
Over Voltage CategoryDC Type II/AC Type IIIDC Type II/AC Type IIIDC Type II/AC Type IIIDC Type II/AC Type IIIDC Type II/AC Type III
General Data
Operating Temperature Range (°C)-40~60°C, >45°C Derating-40~60°C, >45°C Derating-40~60°C, >45°C Derating-40~60°C, >45°C Derating-40~60°C, >45°C Derating
CoolingSmart CoolingSmart CoolingSmart CoolingSmart CoolingSmart Cooling
Noise (dB)≤65 dB≤65 dB≤65 dB≤65 dB≤65 dB
Communication with BMSRS485; CANRS485; CANRS485; CANRS485; CANRS485; CAN
Weight (kg)8080808080
Cabinet Size (WxHxD mm)527×894×294 (Excluding Connectors and Brackets)527×894×294 (Excluding Connectors and Brackets)527×894×294 (Excluding Connectors and Brackets)527×894×294 (Excluding Connectors and Brackets)527×894×294 (Excluding Connectors and Brackets)
Protection DegreeIP65IP65IP65IP65IP65
Installation StyleWall-mountedWall-mountedWall-mountedWall-mountedWall-mounted
Warranty5 Years (10 Years Optional)5 Years (10 Years Optional)5 Years (10 Years Optional)5 Years (10 Years Optional)5 Years (10 Years Optional)
