HomeSolar PanelPERC545-565W Solar Panel 182mm Solar Cell With CSA Certificate
Basic Parameters
Detail Parameters

545-565W Solar Panel 182mm Solar Cell With CSA Certificate

Share:

  • CSA-certified 545-565W solar panel with 182mm 144-cell technology for high efficiency and reliable performance.
  • 182mm solar panel, 545-565W output, CSA certified, high efficiency monocrystalline cells, durable frame, 25 year performance warranty.
  • 545-565W CSA certified solar panel with 182mm PV cells, high efficiency, durable and ideal for commercial/residential applications.
  • High performance 545-565W solar panel with CSA certified 182mm cells for superior efficiency and reliability in utility scale applications.
  • CSA-certified 545-565W solar panel with 182mm 144-cell technology for high efficiency and reliable performance.
  • 182mm solar panel, 545-565W output, CSA certified, high efficiency monocrystalline cells, durable frame, 25 year performance warranty.
  • 545-565W CSA certified solar panel with 182mm PV cells, high efficiency, durable and ideal for commercial/residential applications.
  • High performance 545-565W solar panel with CSA certified 182mm cells for superior efficiency and reliability in utility scale applications.
  • ‌1. Technical Specifications & Cell Technology‌
    This monocrystalline solar panel integrates 182mm silicon wafers with advanced half-cut cell technology, featuring a 144-cell configuration. It achieves a module conversion efficiency of 22.02% and delivers a power output range of 545W to 570W, optimized through reduced resistive losses and improved current pathways.

    ‌2. Performance & Energy Yield Enhancements‌
    The panel maximizes energy generation with a backside power gain of up to 21.86%, leveraging bifacial capabilities for enhanced light capture. Its superior low-irradiation performance ensures consistent output under diffuse or suboptimal sunlight conditions. Compatibility with mainstream mounting and inverter systems simplifies integration and scalability.

    ‌3. Durability & Environmental Resilience‌
    Engineered for harsh operating environments, the panel features corrosion-resistant materials tested against salt mist, ammonia, and sand abrasion. It maintains operational stability across extreme temperatures (-40°C to +85°C) and humidity levels (up to 100% RH), validated through accelerated aging and IEC stress tests.

    ‌4. Quality Assurance & Warranty‌
    Certified to CE and CSA standards, the product guarantees long-term reliability with industry-leading degradation rates: ≤1% first-year degradation and ≤0.55% annual degradation thereafter. Dual warranties include a 12-year comprehensive coverage for material/processing defects and a 25-year linear power output guarantee (≥87.4% residual power at end-of-life).
Download Inquire

FAQS

Q :

Does the product meet international certifications?

A :

Compliant with ‌CE, CSA, and IEC standards‌, meeting global safety and performance requirements.

Q :

Is the panel compatible with existing PV systems?‌

A :

Designed with standardized dimensions and electrical parameters for seamless integration with mainstream inverters, mounting systems, and trackers‌.

Q :

What project types are these panels suitable for?

A :

Ideal for utility-scale solar farms, commercial rooftops, and challenging environments (e.g., coastal areas, deserts)‌; Bifacial performance excels in high-reflectivity scenarios, such as snowy or light-colored surfaces

Q :

What are the minimum order quantity (MOQ) and lead time?‌

A :

MOQ starts from 50,000watt, with payment options including L/C and T/T‌15; Production lead time typically ranges from ‌3 to 10 working days‌, depending on order volume‌

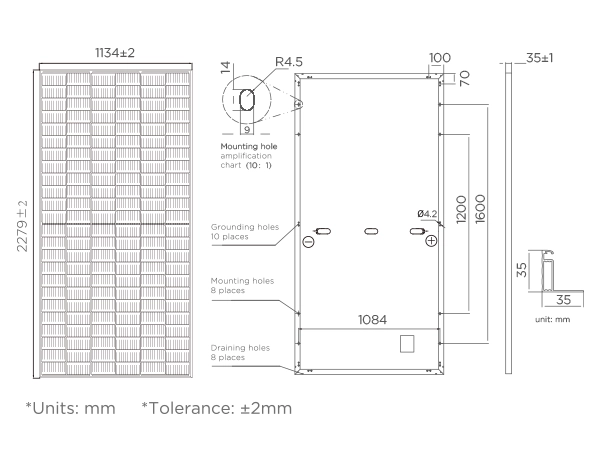

Mechanical Parameters

Layout144 Cells (6x24)
Dimensions2279 x 1134 x 30mm
Weight28kg
Junction boxIP68 Rated, 3 Diodes
Packaging36pcs/box, 720pcs/40'HQ

Electrical Characteristics (STC*)

Maximum Power (Pmax/W)545550555560565
Maximum Power Voltage (Vmp/V)40.7940.8940.9941.0941.18
Maximum Power Current (Imp/A)13.3613.4513.5413.6313.72
Open Circuit Voltage (Voc/V)49.5349.6349.7349.8349.92
Short Circuit Current (Isc/A)13.9414.0314.1214.2114.30
Module Efficiency (%)21.0921.2821.4821.6721.86
Power Output Tolerance (W)0~+50~+50~+50~+50~+5

Electrical Characteristics (NMOT*)

Maximum Power (Pmax/W)340344348352356
Maximum Power Voltage (Vmp/V)32.0532.2732.4932.7132.93
Maximum Power Current (Imp/A)10.6110.6610.7110.7610.81
Open Circuit Voltage (VOC/V)40.6340.8541.0741.2941.51
Short Circuit Current (Isc/A)11.2511.3011.3511.4011.45
