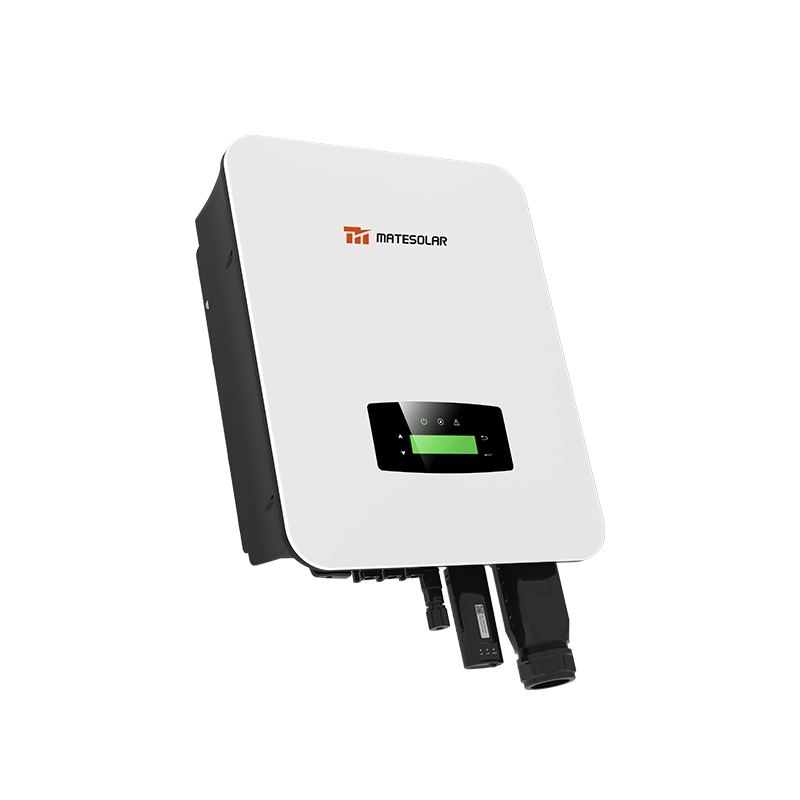

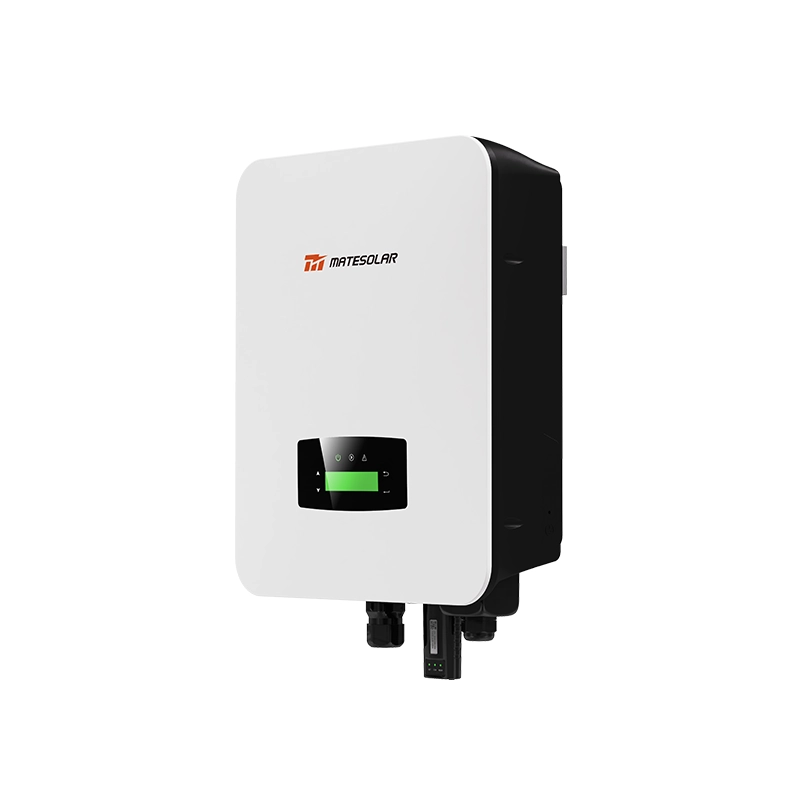

Single Phase Hybrid Inverter 3-12KW For UPS Function

Share:

  • 3-12kW hybrid inverters with UPS backup for seamless single-phase power, ensuring reliability and efficiency during energy transitions.
  • 3-12kW single-phase hybrid inverter with UPS functionality and advanced energy management for seamless power control.
  • 3-12kW compact hybrid inverters with seamless UPS integration for reliable single-phase power backup and energy management.
  • 3-12kW hybrid inverters with UPS backup for seamless single-phase power, ensuring reliability and efficiency during energy transitions.
  • 3-12kW single-phase hybrid inverter with UPS functionality and advanced energy management for seamless power control.
  • 3-12kW compact hybrid inverters with seamless UPS integration for reliable single-phase power backup and energy management.
  • 1.Wide Power Range & Battery Compatibility
    The Afore Af low voltage series storage inverters offer a power range of 7kW to 12kW and are compatible with low voltage (40-60V) batteries, providing flexibility for residential energy storage solutions.

    2.Advanced Energy Management
    Utilizing time-of-use and demand charge rate structures, the inverters optimize energy consumption, significantly reducing reliance on the public grid and lowering electricity costs.

    3.Reliable Backup Power
    Featuring a UPS function with a switch time of <10ms, the inverters ensure uninterrupted power for critical loads during outages. In backup mode, they support up to 150% peak output overloading for high-power demands.

    4.Enhanced Safety Features
    Integrated with Arc Fault Circuit Interrupter (AFCI) and rapid shutdown capabilities, the inverters provide protection against electrical fires and ensure safe, quick de-energization during maintenance or emergencies.
Download Inquire

FAQS

Q :

What is the power range of the Afore Af low voltage series storage inverters?

A :

The inverter offers a power range from 7kW to 12kW, making it suitable for various residential energy storage needs.

Q :

How does the energy management system work?

A :

The inverters use time-of-use and demand charge rate structures to optimize energy consumption, significantly reducing energy purchased from the public grid.

Q :

What backup features does the inverter provide?

A :

With a UPS function (switch time <10ms), the inverter ensures uninterrupted power for critical loads during outages and supports up to 150% peak output overloading in backup mode.

Q :

What safety features are included in the Afore Af series?

A :

The inverters are equipped with an Arc Fault Circuit Interrupter (AFCI) and rapid shutdown functionality, enhancing safety by preventing electrical fires and enabling quick system de-energization.

Product Information

PV InputAF3K-THPAF4K-THPAF5K-THPAF6K-THPAF8K-THPAF10K-THPAF12K-THP
Max. DC Input Power (kW)567.59121518
Max. PV Voltage (V)1000100010001000100010001000
Rated DC Input Voltage (V)620620620620620620620
DC Input Voltage Range (V)150 - 1000150 - 1000150 - 1000150 - 1000150 - 1000150 - 1000150 - 1000
MPPT Voltage Range (V)150 - 850150 - 850150 - 850150 - 850150 - 850150 - 850150 - 850
Full MPPT Range(V)200 - 850200 - 850200 - 850200 - 850300 - 850500 - 850500 - 850
Start-up Voltage (V)160160160160160160160
Max. DC Input Current (A)20x220x220x220x220x220x220x2
Max. Short Current(A)30x230x230x230x230x230x230x2
No. of MPPT Tracker/ Strings2/22/22/22/22/22/22/2
Battery Port
Battery Nominal Voltage (V)100100100150200250300
Battery Voltage Range (V)80 - 60080 - 60080 - 60080 - 60080 - 600120 - 650120 - 650
Max. Charge/Discharge Current (A)50505050505050
Max. Charge/Discharge Power (kW)3K4K5K6K8K10K12K
Charging Curve3 Stages3 Stages3 Stages3 Stages3 Stages3 Stages3 Stages
Compatible Battery TypeLi-ion batteryLi-ion batteryLi-ion batteryLi-ion batteryLi-ion batteryLi-ion batteryLi-ion battery
AC Grid Output
Nominal AC Output Power (kW)300040005000600080001000012000
Max. AC Input/Output Power (kVA)4500600075009000120001500018000
Max. AC Output Current (A)5.378.510.513.51721.5
Nominal AC Voltage (V)230/400230/400230/400230/400230/400230/400230/400
Nominal AC Frenquency (Hz)50/6050/6050/6050/6050/6050/6050/60
Power Factor1（- 0.8-0.8）1（- 0.8-0.8）1（- 0.8-0.8）1（- 0.8-0.8）1（- 0.8-0.8）1（- 0.8-0.8）1（- 0.8-0.8）
Current THD (%)<3 %<3 %<3 %<3 %<3 %<3 %<3 %
AC Load Output (Back-up)
Nominal Output Power (VA)300040005000600080001000012000
Nominal Output Voltage (V)230/400230/400230/400230/400230/400230/400230/400
Nominal Output Frequency (Hz)50/6050/6050/6050/6050/6050/6050/60
Nominal Output Current (A)4.45.87.38.711.614.517.4
Peak Output Power3300VA, 60s4400VA, 60s5500VA, 60s6600VA, 60s8800VA, 60s11000VA, 60s13200VA, 60s
THDV (with linear load)<3 %<3 %<3 %<3 %<3 %<3 %<3 %
Switching Time (ms)<10<10<10<10<10<10<10
Efficiency
Europe Efficiency97.50%97.50%97.50%97.50%97.50%97.50%97.50%
Max. Efficiency98.00%98.00%98.00%98.00%98.20 %98.20 %98.30 %
Battery Charge/Discharge Efficiency98.00%98.00%98.00%98.00%98.00%98.00%98.00%
Protection
Reverse Polarity ProtectionYesYesYesYesYesYesYes
Over Current / Voltage ProtectionYesYesYesYesYesYesYes
Anti-islanding ProtectionYesYesYesYesYesYesYes
AC Short-ciruit ProtectionYesYesYesYesYesYesYes
Leakage Current DetectionYesYesYesYesYesYesYes
Ground Fault MonitoringYesYesYesYesYesYesYes
Grid MonitoringYesYesYesYesYesYesYes
Enclosure Protect LevelIP65IP65IP65IP65IP65IP65IP65
General Data
Dimensions (W x H x D, mm)558 x 535 x 260 mm558 x 535 x 260 mm558 x 535 x 260 mm558 x 535 x 260 mm558 x 535 x 260 mm558 x 535 x 260 mm558 x 535 x 260 mm
Weight (kg)29kg29kg29kg29kg29kg29kg29kg
TopologyTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerlessTransformerless
Cooling ConceptNatural ConvectionNatural ConvectionNatural ConvectionNatural ConvectionNatural ConvectionNatural ConvectionNatural Convection
Relatively Humidity0-100 %0-100 %0-100 %0-100 %0-100 %0-100 %0-100 %
Operating Temperature Range (°C)-25 to 60-25 to 60-25 to 60-25 to 60-25 to 60-25 to 60-25 to 60
Operating Altitude (m)<4000<4000<4000<4000<4000<4000<4000
Noise Emission (dB)<30<30<30<30<30<30<30
Standby Consumption (W)<5<5<5<5<5<5<5
Display & Communication InterfacesLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4GLCD, LED, RS485, CAN, Wi-Fi, GPRS, 4G
Certification & ApprovalsNRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2
EMCEN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3EN61000-6-2, EN61000-6-3
