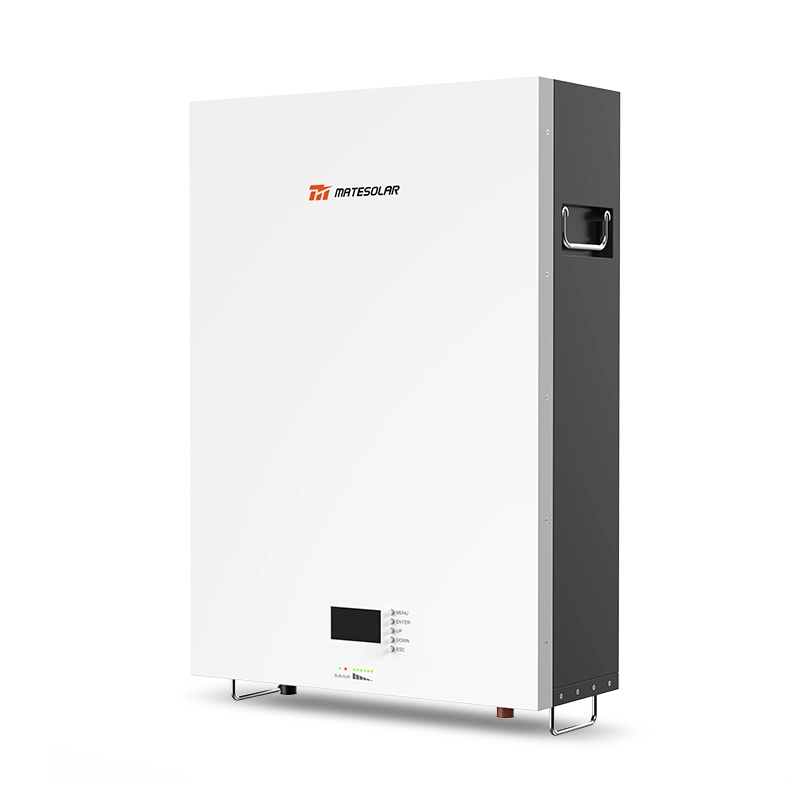

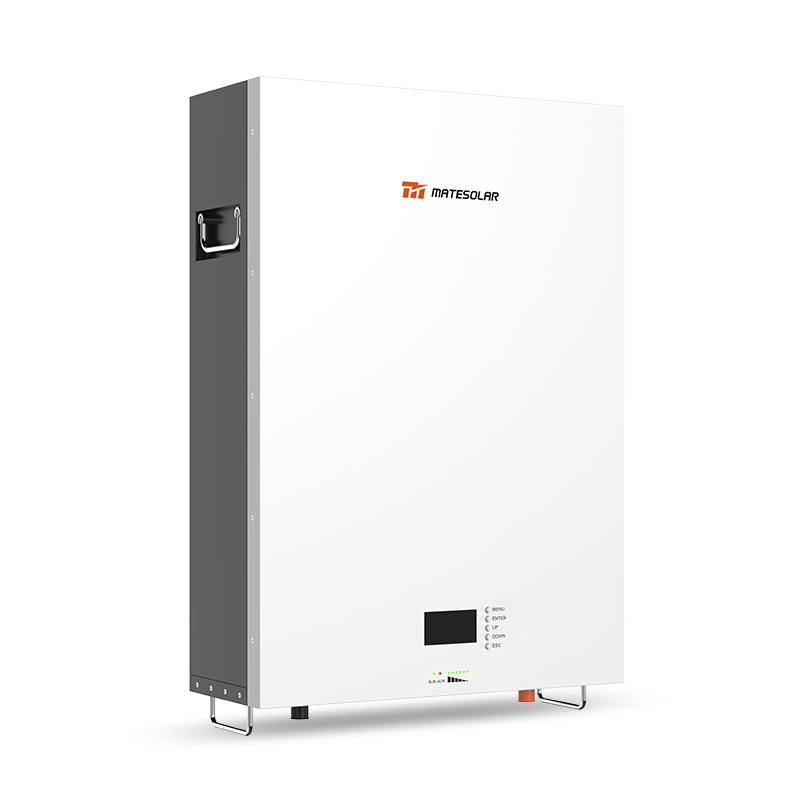

48V 51.2V 5kWh 10kWh Wall Mount LiFePO4 Battery Pack For Sale

Share:

  • Limited Stock wall mount LiFePO4 battery 48V 51.2V 5kWh 10kWh Pack for home use
  • Exclusive wall mount LiFePO4 battery 48V 51.2V 5kWh 10kWh with Premium Quality
  • High Demand 48V 51.2V 5kWh 10kWh Wall Mount LiFePO4 Home Battery
  • Exclusive wall mount LiFePO4 battery 48V 51.2V 5kWh 10kWh For home use.
  • Limited Stock wall mount LiFePO4 battery 48V 51.2V 5kWh 10kWh Pack for home use
  • Exclusive wall mount LiFePO4 battery 48V 51.2V 5kWh 10kWh with Premium Quality
  • High Demand 48V 51.2V 5kWh 10kWh Wall Mount LiFePO4 Home Battery
  • Exclusive wall mount LiFePO4 battery 48V 51.2V 5kWh 10kWh For home use.
  • 1. Safety & Reliability
    Our LiFePO4 battery chemistry ensures exceptional thermal and chemical stability. It features built-in protection against overcharge, over-discharge, and short circuits. This design offers maximum safety for home energy storage, giving homeowners complete peace of mind.

    2. Compact & Space-Saving Design
    The wall-mounted design allows flexible installation in utility rooms, garages, or basements. Its compact form saves valuable floor space. Ideal for residential settings, it integrates neatly into your home while providing high-capacity storage.

    3. Long Life & Stable Performance
    Engineered for over 6000 cycles at 80% depth of discharge, this battery provides long-term reliability. It maintains stable performance and high energy efficiency throughout its lifespan, reducing the need for frequent replacements.

    4. Smart Monitoring & Management
    With an integrated BMS, the battery supports real-time monitoring and remote management. Users can check status and control energy flow via a mobile app or inverter interface, optimizing home energy usage.
Download Inquire

FAQS

Q :

What is the warranty period for the battery?

A :

MateSolar offers a 10-year warranty for its wall mount LiFePO4 battery units, ensuring long-term performance and customer support.

Q :

Is the battery suitable for outdoor installation?

A :

No, this battery is designed for indoor or weather-protected outdoor spaces. It must be installed in a location avoiding direct sunlight and water exposure.

Q :

Can I expand the system capacity later?

A :

Yes, the battery supports parallel connection. You can add multiple units to scale your storage capacity up to meet growing household energy demands.

Q :

Does the battery require regular maintenance?

A :

No, our LiFePO4 battery is maintenance-free. The automatic battery management system handles all operations including balancing and protection.

Product Information

ModelMTWL-48100MTWL-48200MTWL-51100MTWL-51200
Electrical Characteristics
Rate voltage(Vdc)484851.251.2
Cell combination15S1P15S2P16S1P16S2P
Rate capacity(AH)100200100200
Energy storage(KWH)4.89.65.1210.24
Cycle life6000 cycles @80% DOD, 0.5C6000 cycles @80% DOD, 0.5C6000 cycles @80% DOD, 0.5C6000 cycles @80% DOD, 0.5C
Charge/Discharge Standard
Charge voltage(V)52.552.55656
Max. charge current(A)100 (Optional 150/200A for 200AH pack)100 (Optional 150/200A for 200AH pack)100 (Optional 150/200A for 200AH pack)100 (Optional 150/200A for 200AH pack)
Max. discharge current(A)100 (Optional 150/200A for 200AH pack)100 (Optional 150/200A for 200AH pack)100 (Optional 150/200A for 200AH pack)100 (Optional 150/200A for 200AH pack)
Discharge cut-off voltage(VDC)40.540.543.243.2
Charge cut-off voltage(VDC)54.7554.7558.458.4
Enviornment
Charge temperature0°C to 55°C@60±25% Relative Humidity0°C to 55°C@60±25% Relative Humidity0°C to 55°C@60±25% Relative Humidity0°C to 55°C@60±25% Relative Humidity
Discharge temperature-20°C to 55°C@60±25% Relative Humidity-20°C to 55°C@60±25% Relative Humidity-20°C to 55°C@60±25% Relative Humidity-20°C to 55°C@60±25% Relative Humidity
Storage temperature-20°C to 55°C@60±25% Relative Humidity-20°C to 55°C@60±25% Relative Humidity-20°C to 55°C@60±25% Relative Humidity-20°C to 55°C@60±25% Relative Humidity
Mechanical
IP classIP20 (IP65 Option available for 100AH model)IP20 (IP65 Option available for 100AH model)IP20 (IP65 Option available for 100AH model)IP20 (IP65 Option available for 100AH model)
Material systemLiFePO4LiFePO4LiFePO4LiFePO4
Case materialMetalMetalMetalMetal
Case typeWall MountWall MountWall MountWall Mount
Pack dimension L*W*H(mm)580*390*185690*485*226580*390*185690*485*226
Package dimension L*W*H(mm)660*450*240850*570*285660*450*240850*570*285
Net weight(kg)42854488
Gross weight(kg)47954998
Communication
Protocol(Optional)Canbus/RS485/RS232Canbus/RS485/RS232Canbus/RS485/RS232Canbus/RS485/RS232
MonitoringBluetooth/WLAN OptionalBluetooth/WLAN OptionalBluetooth/WLAN OptionalBluetooth/WLAN Optional
Certificates
PackUN38.3, MSDSCE/IEC/UL1973CE/UN38.3/MSDSUN38.3, MSDS
CellUN38.3, MSDS, IEC62619, CE, UL1973UN38.3, MSDS, IEC62619, CE, UL1973UN38.3, MSDS, IEC62619, CE, UL1973UN38.3, MSDS, IEC62619, CE, UL1973
