Best 680W 690W 700W Mono PERC Solar Panel For Sale

Share:

  • 210mm Monocrystalline Solar Panel, 680W-700W, high efficiency, durable, TUV certified for reliable performance.
  • 210mm mono solar panels, 680W-700W, TUV certified, high efficiency for superior energy output.
  • 210mm 680W-700W mono solar panels, TUV certified, high efficiency, durable, ideal for commercial/residential energy solutions.
  • TUV certified 210mm mono solar cells that deliver 680W-700W high efficiency panels with superior performance and reliability.
  • 210mm Monocrystalline Solar Panel, 680W-700W, high efficiency, durable, TUV certified for reliable performance.
  • 210mm mono solar panels, 680W-700W, TUV certified, high efficiency for superior energy output.
  • 210mm 680W-700W mono solar panels, TUV certified, high efficiency, durable, ideal for commercial/residential energy solutions.
  • TUV certified 210mm mono solar cells that deliver 680W-700W high efficiency panels with superior performance and reliability.
  • 1. High-Efficiency Mono PERC Cells
    MateSolar's panels utilize 210mm high-efficiency monocrystalline PERC cells, achieving conversion efficiencies up to 22.54%. These cells ensure superior energy output and reliability. The half-cell design reduces internal losses and enhances shading tolerance, providing consistent performance even in suboptimal conditions.

    2. Durable Dual-Glass Construction
    Our 210mm dual-glass panels feature a robust design with 3.2mm high-transparency front glass and tempered back glass. This construction offers excellent resistance to fire, moisture, and corrosion. It ensures long-term reliability with minimal power degradation over 25 years.

    3. Optimized for System Compatibility
    MateSolar's 210mm panels are engineered for seamless integration with inverters and tracking systems. They reduce line losses by 0.21% compared to larger formats, lowering overall BOS costs. Their dimensions balance high power output with practical handling and installation efficiency.

    4. Enhanced Power Output and Warranty
    With power outputs reaching 700W, these panels maximize energy density for diverse applications. They come with a 25-year linear power warranty and 12-year workmanship warranty, ensuring peace of mind and long-term ROI for commercial and utility-scale projects.
Download Inquire

FAQS

Q :

What is the typical efficiency range of MateSolar 182mm mono PERC panels?

A :

MateSolar 210mm panels achieve efficiency ratings between 21.90% and 22.54%, depending on the model and configuration. This high efficiency is achieved through advanced PERC technology and multi-busbar design.

Q :

How does the dual-glass design benefit solar panel performance?

A :

The dual-glass construction enhances durability, providing better protection against environmental stresses like humidity, fire, and abrasion. It also reduces degradation rates, ensuring higher energy output over the panel’s lifespan.

Q :

Are these panels compatible with mainstream inverters and mounting systems?

A :

Yes, MateSolar 210mm panels are designed for broad compatibility with mainstream inverters, as well as standard mounting systems.

Q :

What warranties come with MateSolar 210mm high-power panels?

A :

MateSolar offers a 25-year performance warranty guaranteeing power output retention, along with a 12-year product workmanship warranty. This ensures long-term reliability and customer satisfaction.

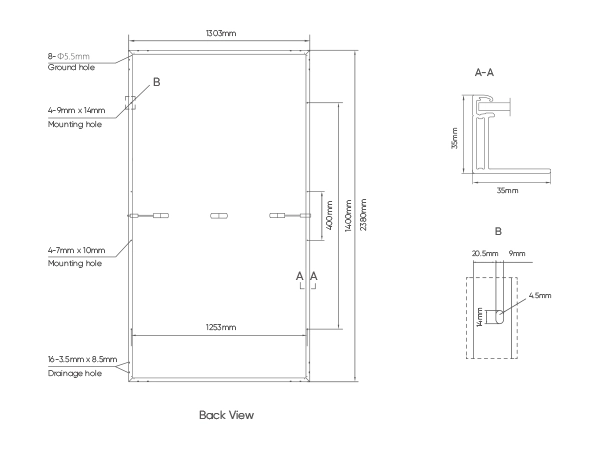

Mechanical Parameters

Layout132 Cells (6x22)
Dimensions2384 x 1303 x 35mm
Weight33.6kg
Junction boxIP68 Rated, 3 Diodes
Packaging31pcs/box, 558pcs/40'HQ

Electrical Characteristics (STC*)

Maximum Power (Pmax/W)680685690695700
Maximum Power Voltage (Vmp/V)38.6038.8039.0039.2039.40
Maximum Power Current (Imp/A)17.6217.6617.7017.7317.77
Open Circuit Voltage (Voc/V)46.5046.7046.9047.1047.30
Short Circuit Current (Isc/A)18.7318.7818.8318.8818.93
Module Efficiency (%)21.9022.0622.2222.3822.54
Power Output Tolerance (W)0~+5W0~+5W0~+5W0~+5W0~+5W

Electrical Characteristics (NMOT*)

Maximum Power (Pmax/ W)516520524528532
Maximum Power Voltage (Vm / V)36.1036.3036.5036.7036.90
Maximum Power Current (Imp/ A)14.3014.3314.3614.3914.42
Open Circuit Voltage (VOC/ V)43.8044.0044.2044.4044.60
Short Circuit Current (Isc/ A)15.0915.1315.1715.2115.25
