HomeSystemResidentialUS VoltageResidential 10KW Off-Grid Solar System With Battery For Home Use
Basic Parameters
Detail Parameters

Residential 10KW Off-Grid Solar System With Battery For Home Use

Share:

  • 10KW off-grid solar system with battery storage for reliable, sustainable home energy independence.
  • 10kW off-grid solar system with battery storage for reliable, sustainable home energy independence.
  • 10KW off-grid solar system with battery storage for uninterrupted, eco-friendly home power.
  • 10KW off-grid solar power system with battery backup for uninterrupted home power.
  • 10KW off-grid solar system with battery storage for reliable, sustainable home energy independence.
  • 10kW off-grid solar system with battery storage for reliable, sustainable home energy independence.
  • 10KW off-grid solar system with battery storage for uninterrupted, eco-friendly home power.
  • 10KW off-grid solar power system with battery backup for uninterrupted home power.
  • ‌1. Pure Sine Wave Reliability
    Supports stable AC power for heavy appliances (e.g., air conditioners) with intelligent overload protection. Ensures seamless operation of industrial equipment during peak demand or grid instability.

    2. Modular Battery Customization
    Expandable battery banks enable tailored backup durations (hours to days). Easily add units for prolonged outages without replacing core components, ideal for homes or small businesses.

    3. Scalable Solar Expansion
    Foldable panels and hybrid inverters allow gradual solar array/battery additions. Adapts to rising energy needs (e.g., EV charging) with plug-and-play simplicity.

    4. Extreme Weather Durability
    Corrosion-resistant, IP65-rated components withstand storms, sand, or humidity. Guarantees 25–30-year lifespans, even in coastal or desert climates with minimal maintenance.
Download Inquire

FAQS

Q :

Why is pure sine wave reliability important?‌

A :

Pure sine wave delivers stable AC power for heavy appliances (e.g., AC units) and industrial equipment, preventing overloads during peak demand or grid fluctuations.

Q :

Can battery backup durations be customized?‌

A :

Yes, modular battery banks let you scale backup from hours to days by adding units, ideal for homes/businesses facing frequent outages.

Q :

How does solar expansion work?‌

A :

Hybrid inverters and foldable panels allow gradual, plug-and-play solar/battery additions to meet rising needs like EV charging or energy demand.

Q :

Is it built for harsh climates?‌

A :

IP65-rated, corrosion-resistant materials endure storms, sand, or humidity, ensuring 25–30-year performance in coastal/desert areas with minimal upkeep.

Product Information

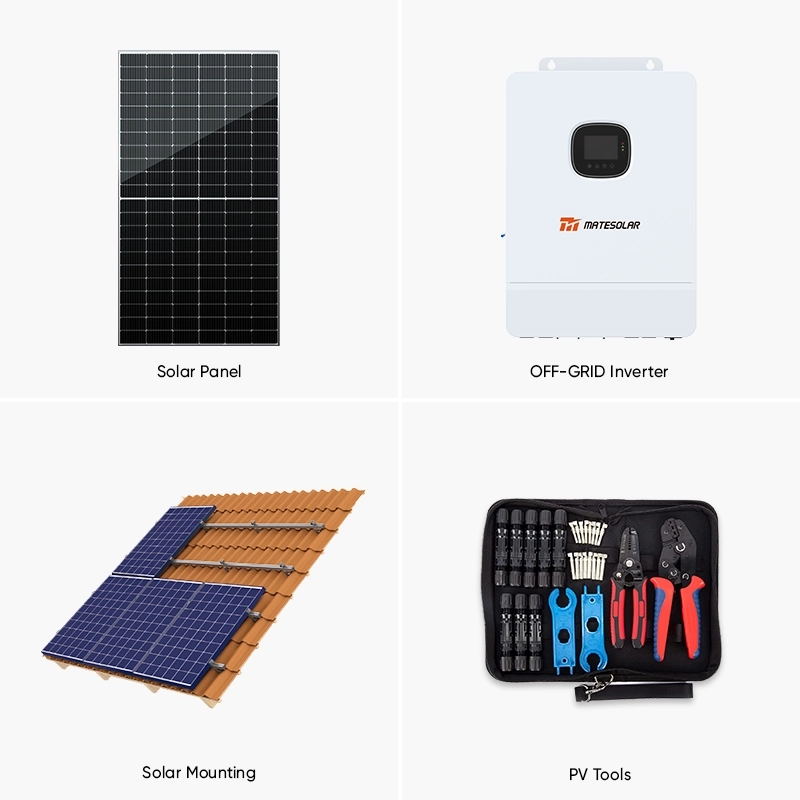

PV Modules
Parameter
Testing ConditionSTC
Maximum Power(Pmax/W)560W
Open Circuit Voltage(Voc/V)49.84
Short Circuit Current(lsc/A)14.14
Voltage at Maximum Power(Vmp/V)41.08
Current at Maximum Power(lmp/A)13.64
Module Efficiency(%)21.67

Positive power tolerance (0~+5W) guaranteed; Reduced resistive loss with lower operating current; Higher energy yield with lower operating current; Reduced hot spot risk with optimized electrical design and lower operating current.

Lithium battery
Parameter
Nominal Capacity200Ah
Nominal Voltage48V
Max.Charging Current100A
Max.Discharging Current100A

High Specific Energy; Support Parallel Operation; Easy Installation; Long Cycle Life.

Inverter
Parameter
Rated Output Power10000W
Rated Output Voltage/Frequency120Vac/240Vac, 50Hz/60Hz
No. of MPPT2
MPPT Voltage Range120-450Vdc
Battery TypeLead-acid/Li-ion/User defined
Rated Battery Voltage40～60Vdc

Advanced MPPT with up to 99.9% efficiency;
Up to 6 units in parallel connection;
Easy to install and simple to use;
Supports Li-ion battery BMS communication
