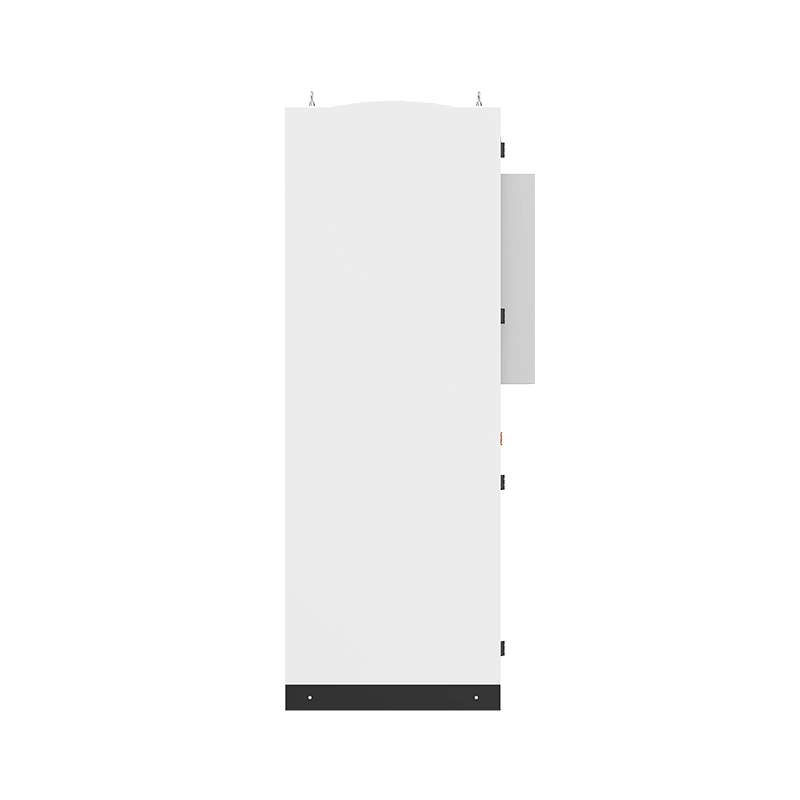

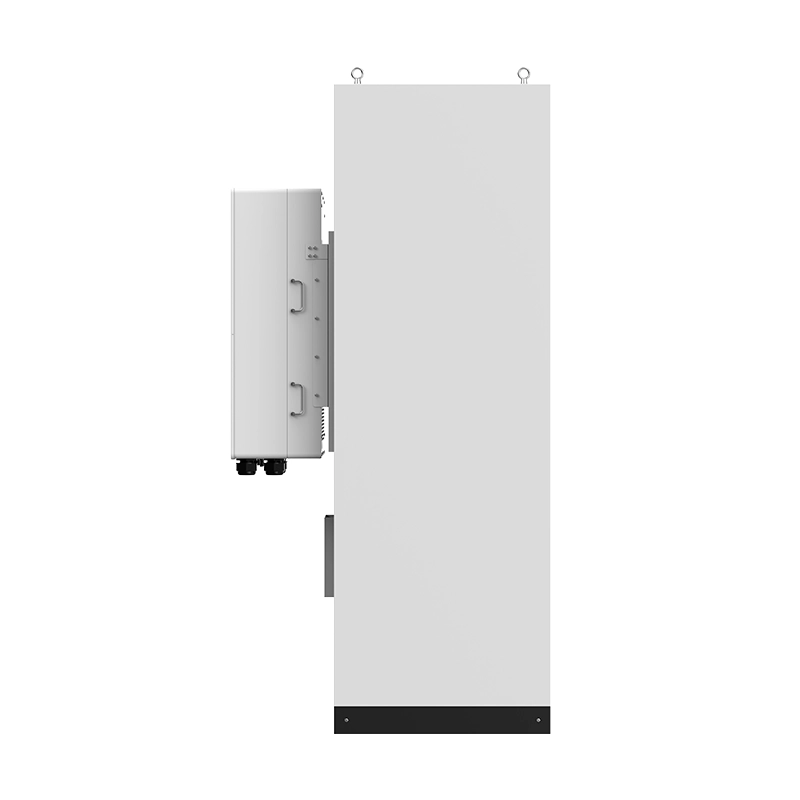

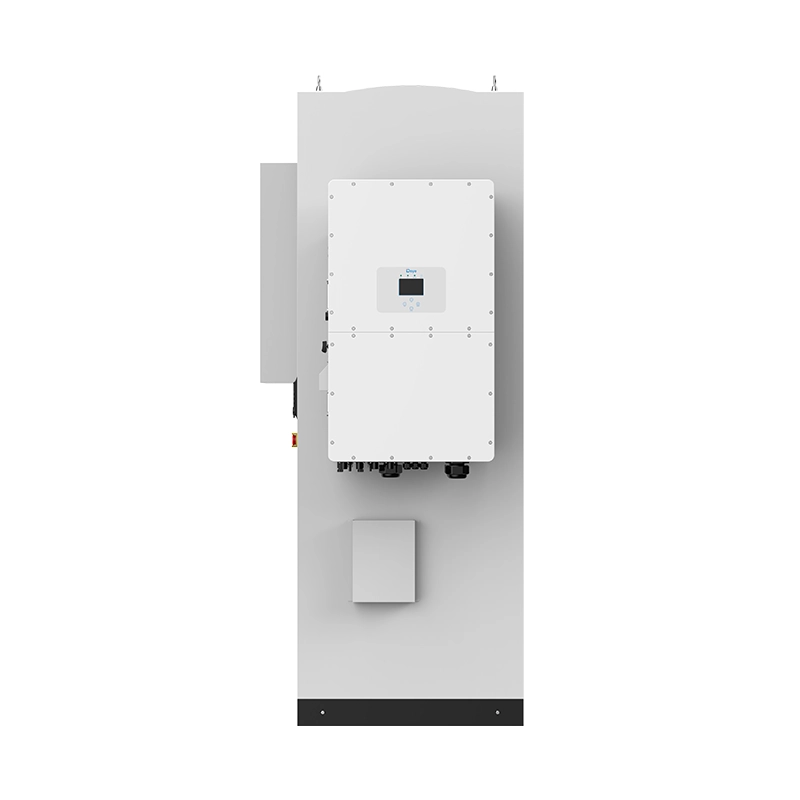

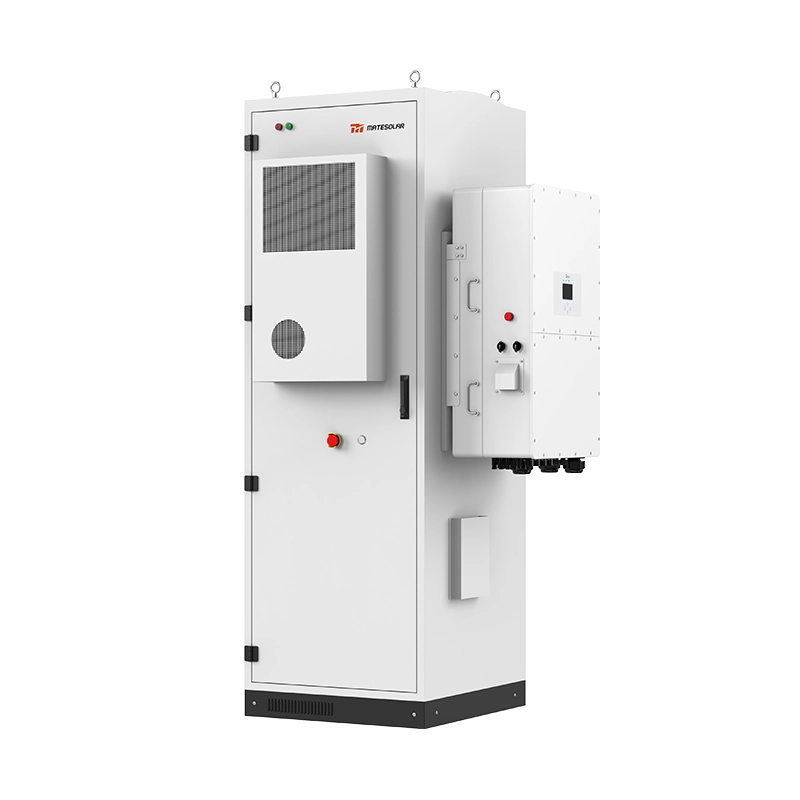

Outdoor ESS Solar All In One 60KWh High Degree Of Integration

Share:

  • Compact 60kWh all-in-one outdoor solar ESS with integrated design for seamless renewable energy storage.
  • 60kWh outdoor solar ESS, all-in-one integration, high efficiency, scalable, weatherproof and intelligent energy management.
  • 60kWh outdoor solar storage system with compact, integrated power unit for efficient renewable energy management.
  • 60kWh Outdoor Solar ESS with compact, highly integrated design for space-saving, reliable storage of renewable energy.
  • 60kWh all-in-one outdoor ESS with integrated solar, scalable storage and intelligent energy management for off-grid resilience.
  • Compact 60kWh all-in-one outdoor solar ESS with integrated design for seamless renewable energy storage.
  • 60kWh outdoor solar ESS, all-in-one integration, high efficiency, scalable, weatherproof and intelligent energy management.
  • 60kWh outdoor solar storage system with compact, integrated power unit for efficient renewable energy management.
  • 60kWh Outdoor Solar ESS with compact, highly integrated design for space-saving, reliable storage of renewable energy.
  • 60kWh all-in-one outdoor ESS with integrated solar, scalable storage and intelligent energy management for off-grid resilience.
  • 1‌.High Degree of Integration
    Compact Design: Combines multiple functionalities into a single unit, reducing the need for additional components. Simplified System Architecture: Streamlines installation and operation, making it easier to manage and maintain.

    ‌2.Flexible Parallel Functions
    Scalability: Supports parallel connection of multiple units, allowing for increased capacity and power output as needed. Modular Design: Enables easy expansion of the system to meet growing energy demands.

    ‌3.Intelligent Management
    AdvanCed Monitoring and Control: Features real-time monitoring and control capabilities, allowing users to optimize energy usage and system performanCe.

    Smart Algorithms: Utilizes intelligent algorithms to manage energy flow, ensuring efficient operation and maximizing energy savings.
Download Inquire

FAQS

Q :

What is an Outdoor ESS Solar All-in-One system?

A :

It is an integrated energy storage system that combines solar power generation, battery storage and energy management in a single unit. It is designed for outdoor use and supports different operating modes to optimise energy use.

Q :

What are the benefits of a modular design?

A :

The modular design allows for easy expansion and customisation. You can start with a smaller system and add more modules as your energy needs grow, making it cost-effective and scalable.

Q :

How does the air cooling system work?

A :

The air cooling system uses fans and heat dissipation mechanisms to maintain optimum operating temperatures, ensuring the system operates efficiently and reliably even in hot conditions.

Q :

Can this system be used off-grid?

A :

Yes, the system supports off-grid operation, making it ideal for remote areas or locations without reliable grid access.

Q :

What is peak shifting, and how does it save costs?

A :

Peak shifting involves using stored energy during peak hours (when grid electricity is most expensive) and charging the batteries during off-peak hours. This reduces electricity bills by avoiding periods of high tariffs.

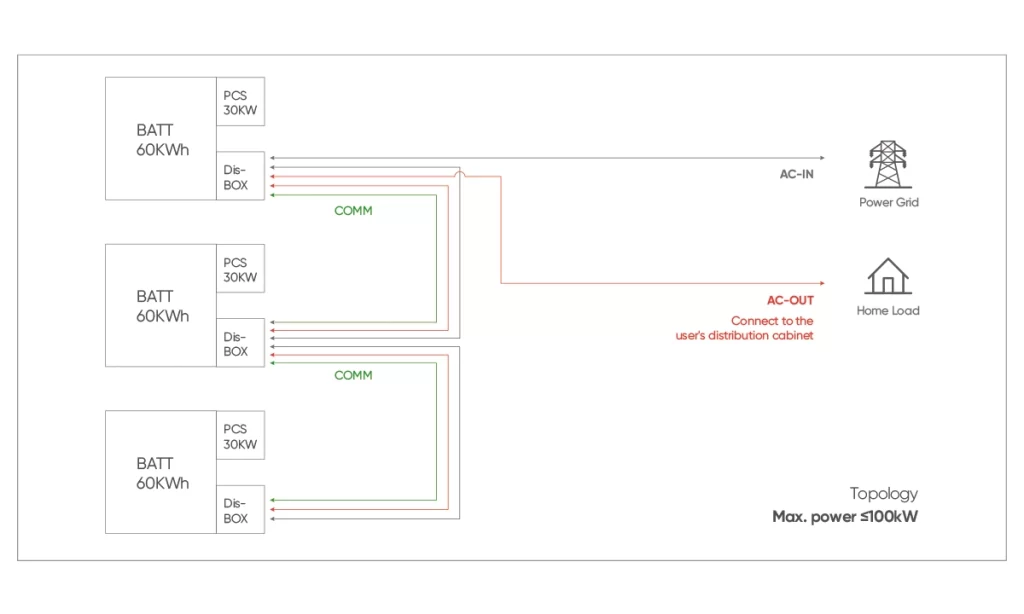

Expansion in AC side

Product Information

ModuleMTBK 3060MTBK 5060
Battery parameters
Number of battery packs12V12V
Rated voltage614.4V614.4V
Voltage range537.5~691.2V537.5~691.2V
Rated energy60kWh60kWh
Max. charging & discharging current100A100A
CommunicationRS485/CANRS485/CAN
Cycle life6000times6000times
PV parameters
Max.PV input power39kW65kW
Rated input voltage600Vdc600Vdc
Max.input voltage1000Vdc1000Vdc
MPPT voltage range200~850Vdc200~850Vdc
PV input current36+36+36(A)36+36+36+36(A)
AC side parameters
AC rated input/output power30kVA50kVA
AC Max. input/output power33kVA55kVA
AC rated input/output current45.6A75.8A
AC Max. input/output power60A83.3A
Voltage3L/N/PE; 230/400V3L/N/PE; 230/400V
Frequency50/60Hz50/60Hz
THDi≤3%≤3%
Power Factor0.8 leading to 0.8 lagging0.8 leading to 0.8 lagging
System parameters
Dimension (W*H*D)1200×2160×750mm1200×2160×750mm
Weight860kg880kg
CommunicationCAN/RS485/WiFi/ETHCAN/RS485/WiFi/ETH
Warranty5 years5 years
Enclosure protection ratingIP55IP55
CoolingAir coolingAir cooling
Environment temperature-30~50°C-30~50°C
Humidity10%~95%RH10%~95%RH
Altitude<2000m<2000m
CertificationsUN38.3/CE/IEC62619/VDE-AR-N 4105/IEC 62109UN38.3/CE/IEC62619/VDE-AR-N 4105/IEC 62109
