HomeSolar PanelAll BlackFull Black 182mm 132Cells 525-545W Bifacial Dual Glass TOPCon PV Module
Basic Parameters
Detail Parameters

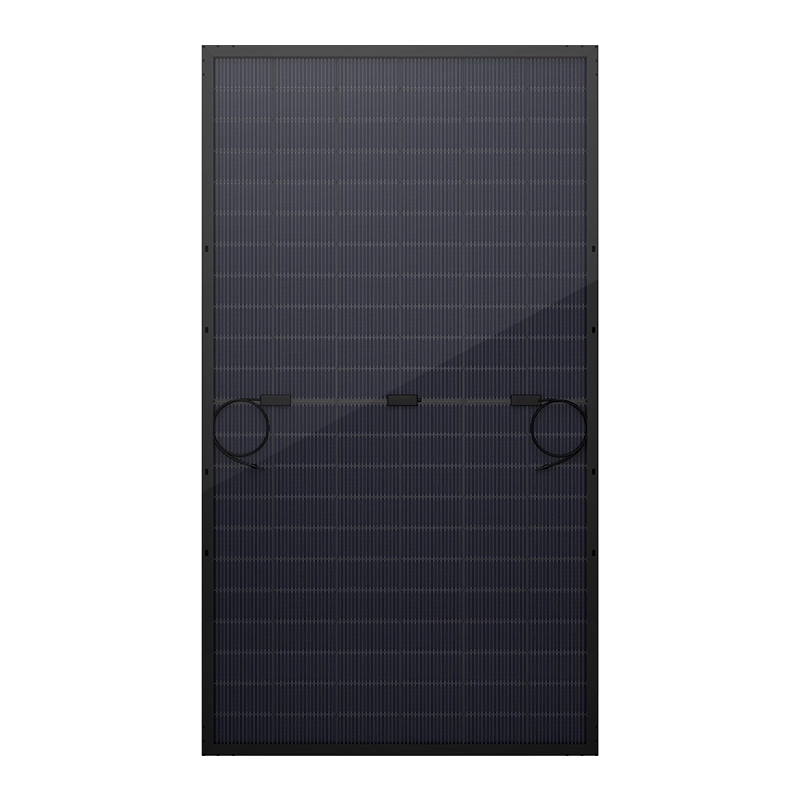

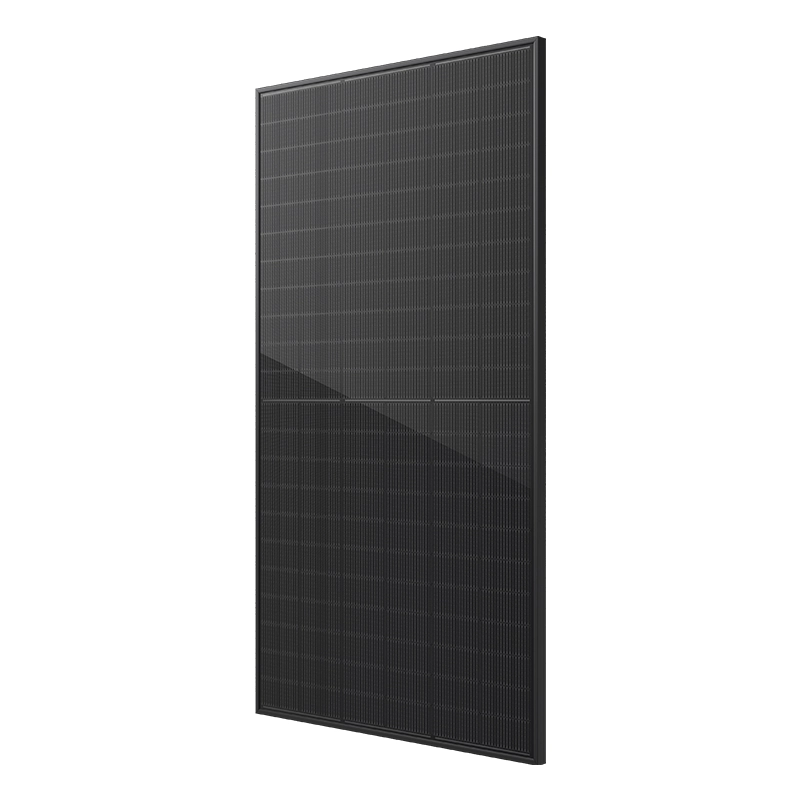

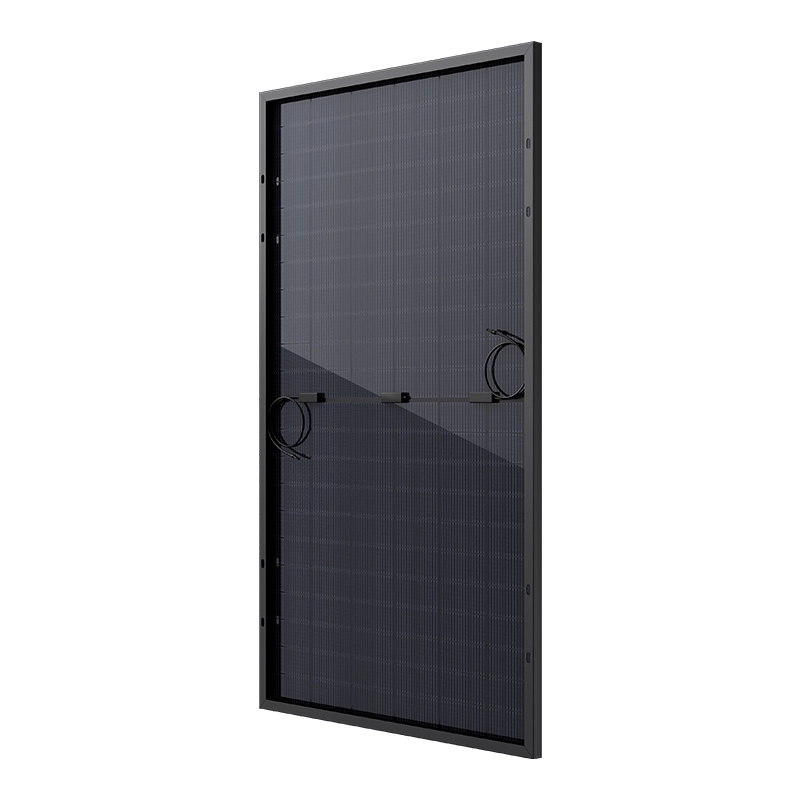

Full Black 182mm 132Cells 525-545W Bifacial Dual Glass TOPCon PV Module

Share:

  • 1. Higher Power Density
    132-cell design maximizes energy output (525–545W) in compact setups, ideal for space-constrained residential or commercial installations.

    2. Advanced Bifacial Performance
    Enhanced rear-side light absorption boosts yields by 15–30%, even on non-reflective surfaces like grass or rooftops.

    3. Optimized Durability
    Dual-glass with anti-PID technology prevents degradation, ensuring stable performance in humid or high-salinity environments.

    4. Streamlined Installation
    Pre-assembled connectors and lightweight design reduce setup time/costs while maintaining robustness for diverse climates.
Download Inquire

FAQS

Q :

How does the 132cells design maximize energy output?

A :

Compact 132cells configuration delivers 525–545W, ideal for space-limited setups without compromising power density in residential/commercial projects.

Q :

Do bifacial panels work on non-reflective surfaces?

A :

Yes, enhanced rear-side absorption boosts yields by 15–35% even on grass or rooftops, expanding installation versatility.

Q :

What protects panels in harsh environments?

A :

Anti-PID dual-glass tech prevents moisture/salt-induced degradation, ensuring reliability in coastal or high-humidity regions.

Q :

How does the design simplify installation?

A :

Pre-assembled connectors and lightweight frames cut labor/time costs while retaining durability for extreme weather conditions.

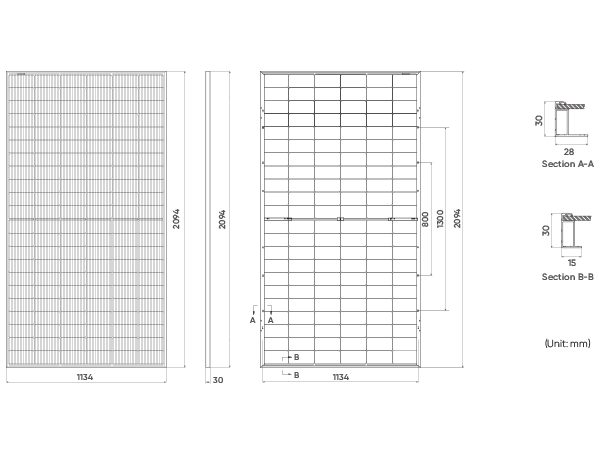

Mechanical Parameters

Layout132Cells (6×22)
Dimensions2094 x 1134 x 30mm
Weight28.5kg
Junction boxIp68 rated (3 by pass diodes)
Packaging36pcs/box, 180pcs/20'GP, 792pcs/40'HQ

Electrical Characteristics (STC*)

Module Type: MS-66HB525530535540545
Maximum power (Pmax/W)525530535540545
Open Circuit Voltage (Voc/V)47.6747.8247.9748.1248.27
Short Circuit Current (Isc/A)13.9313.9714.0314.0914.16
Voltage at Maximum power (Vmpp/V)39.5739.7639.9640.1540.35
Current Maximum Power (Impp/A)13.2713.3313.3913.4513.51
Module Efficiency (%)22.1122.3222.5322.7422.95

Bifacial Output-Rearsid Power Gain

5%Maximum Power (Pmax/W)551557562567572
5%Module Efficiency STC (%)23.2123.4423.6623.8824.10
15%Maximum Power (Pmax/W)604610615621627
15%Module Efficiency STC (%)25.4325.6725.9126.1526.39
25%Maximum Power (Pmax/W)656663669675681
25%Module Efficiency STC (%)27.6427.9028.1628.4328.69
  • 1. Standard Test Conditions [STC]: irradiance 1000W/m2; AM 1.5; ambient temperature 25°C according to EN 60904-3;
  • 2. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.
