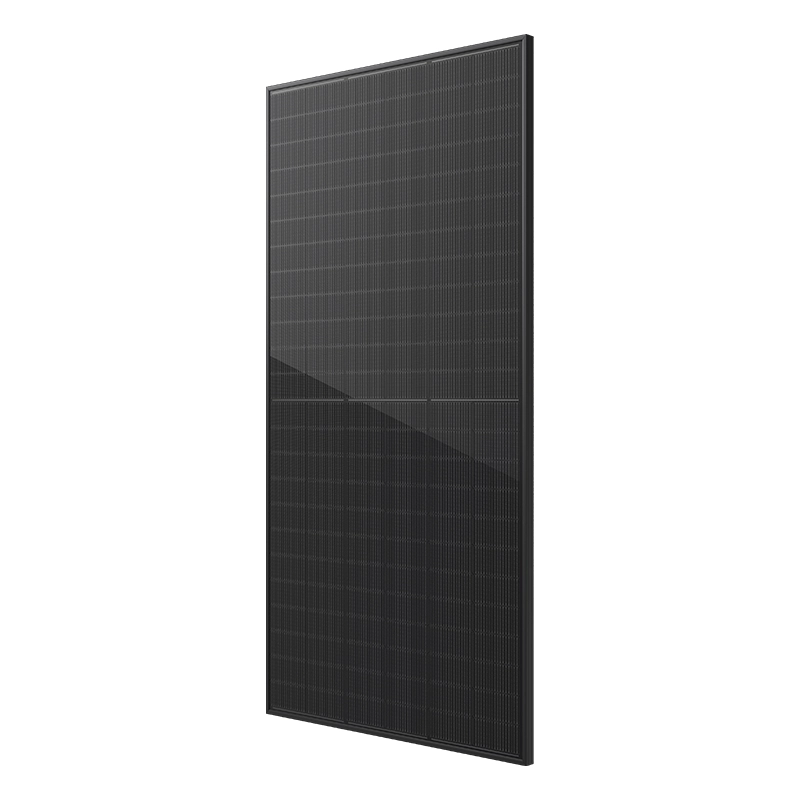

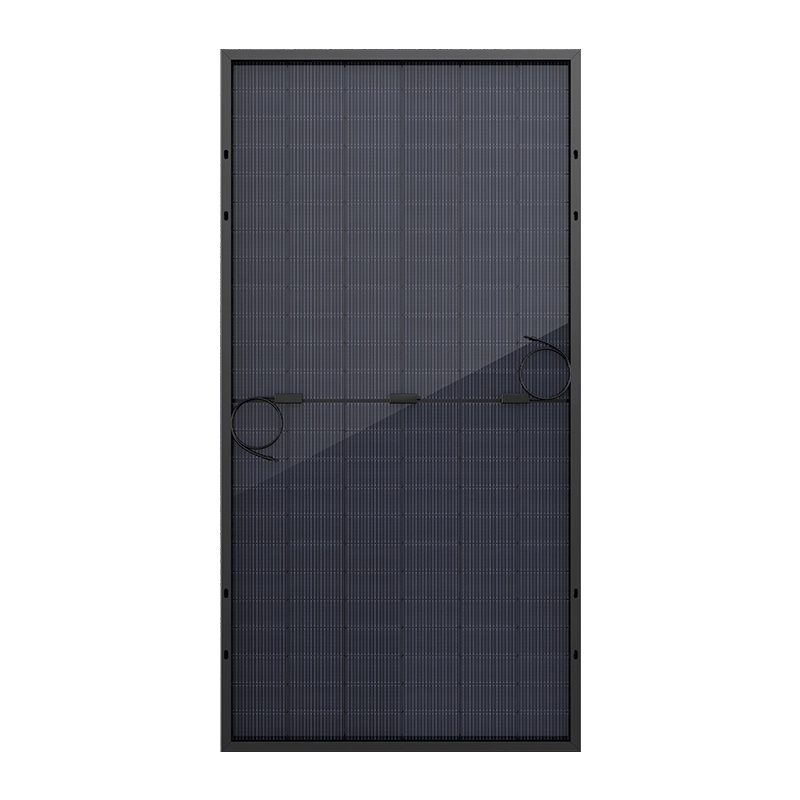

144Cells TOPCon 575-595W Full Black Bifacial Dual Glass Photovoltaic Module​

Share:

  • 1. Ultra-High Power Output
    144cells configuration delivers 575–595W, perfect for large-scale commercial projects requiring maximum energy density per square meter.

    2. All-Black Thermal Efficiency
    Full-black design reduces heat absorption, improving performance stability in high-temperature environments while maintaining sleek aesthetics.

    3. Impact-Resistant Dual Glass
    Reinforced glass layers withstand hail (up to 35mm) and heavy winds, ensuring durability in extreme weather-prone regions.

    4. Extended Compatibility
    Wide voltage range and IEC/UL certifications enable seamless integration with diverse inverters and global grid standards.
Download Inquire

FAQS

Q :

Why choose 144cells panels for commercial projects?

A :

Ultra-high 575–595W output maximizes energy density per square meter, ideal for large-scale installations requiring peak power efficiency.

Q :

Does the all black design improve performance in heat?

A :

Yes, reduced heat absorption enhances stability in high temperatures while retaining a sleek, visually appealing profile for rooftops.

Q :

How durable are the panels in extreme weather?

A :

Impact-resistant dual glass withstands 35mm hail and strong winds, ensuring reliability in storm-prone or harsh climatic regions.

Q :

Are these panels compatible with global systems?

A :

Wide voltage range and IEC/UL certifications guarantee seamless integration with most inverters and grid standards worldwide.

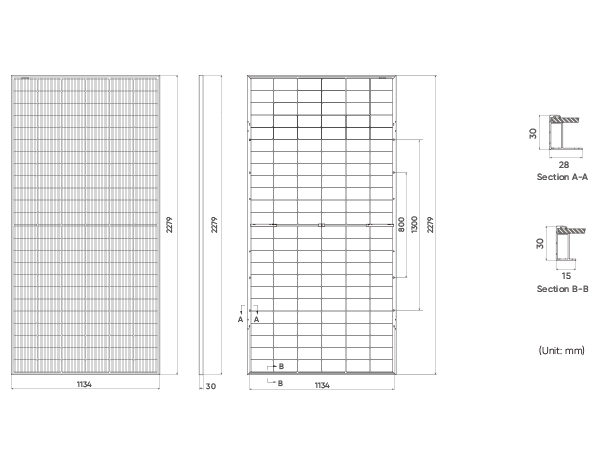

Mechanical Parameters

Layout144Cells (6×24)
Dimensions2279 x 1134 x 30mm
Weight31.5kg
Junction boxIp68 rated (3 by pass diodes)
Packaging36pcs/box, 180pcs/20'GP, 720pcs/40'HQ

Electrical Characteristics (STC*)

Module Type: MS-72HB575580585590595
Maximum power (Pmax/W)575580585590595
Open Circuit Voltage (Voc/V)52.1552.3152.4752.6352.79
Short Circuit Current (Isc/A)13.9514.0114.0714.1314.19
Voltage at Maximum power (Vmpp/V)43.1743.3543.5343.7143.88
Current Maximum Power (Impp/A)13.3213.3813.4413.5013.56
Module Efficiency (%)22.2522.4422.6422.8323.02

Bifacial Output-Rearsid Power Gain

5%Maximum Power (Pmax/W)604609614620625
5%Module Efficiency STC (%)23.3623.5623.7723.9724.17
15%Maximum Power (Pmax/W)661667673679684
15%Module Efficiency STC (%)25.5925.8126.0326.2526.48
25%Maximum Power (Pmax/W)719725731738744
25%Module Efficiency STC (%)27.8128.0528.2928.5428.78
  • 1. Standard Test Conditions [STC]: irradiance 1000W/m2; AM 1.5; ambient temperature 25°C according to EN 60904-3;
  • 2. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.
