HomeSolar PanelTOPCon182mm 120Cells TOPCon 475-495W Bifacial Dual Glass Solar Panels
Basic Parameters
Detail Parameters

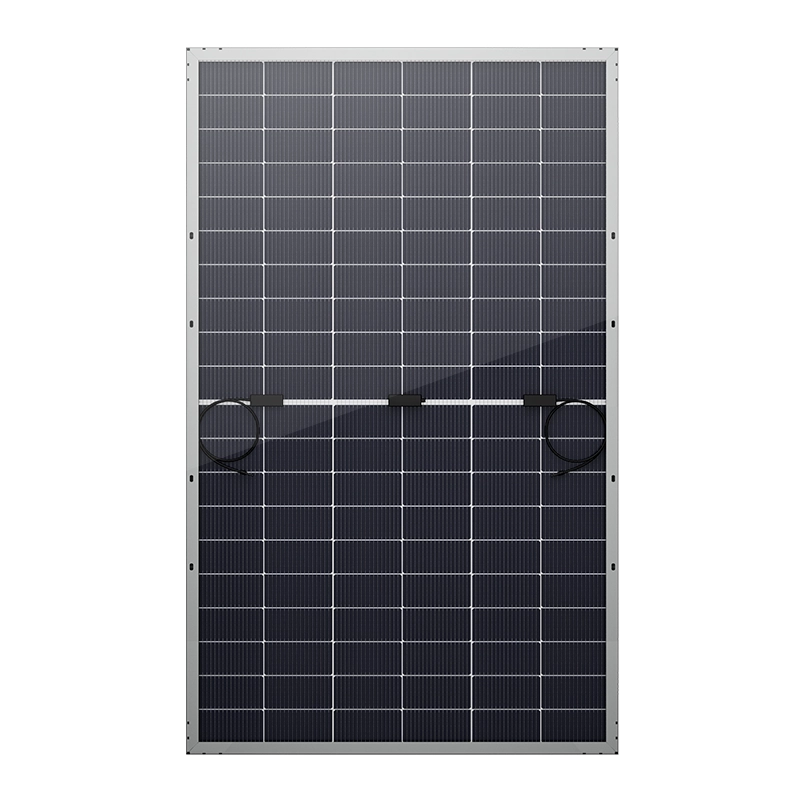

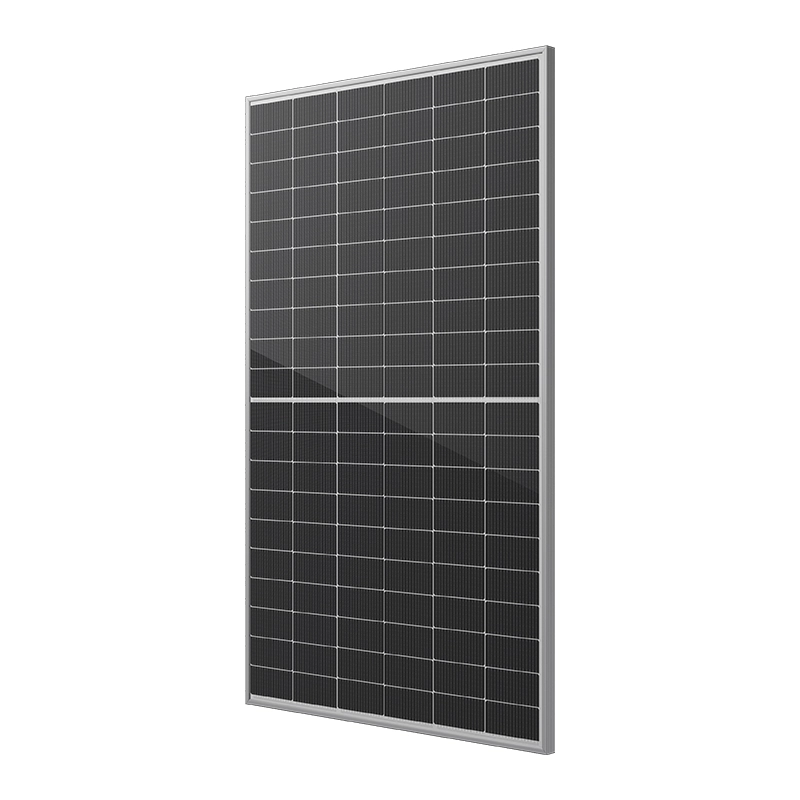

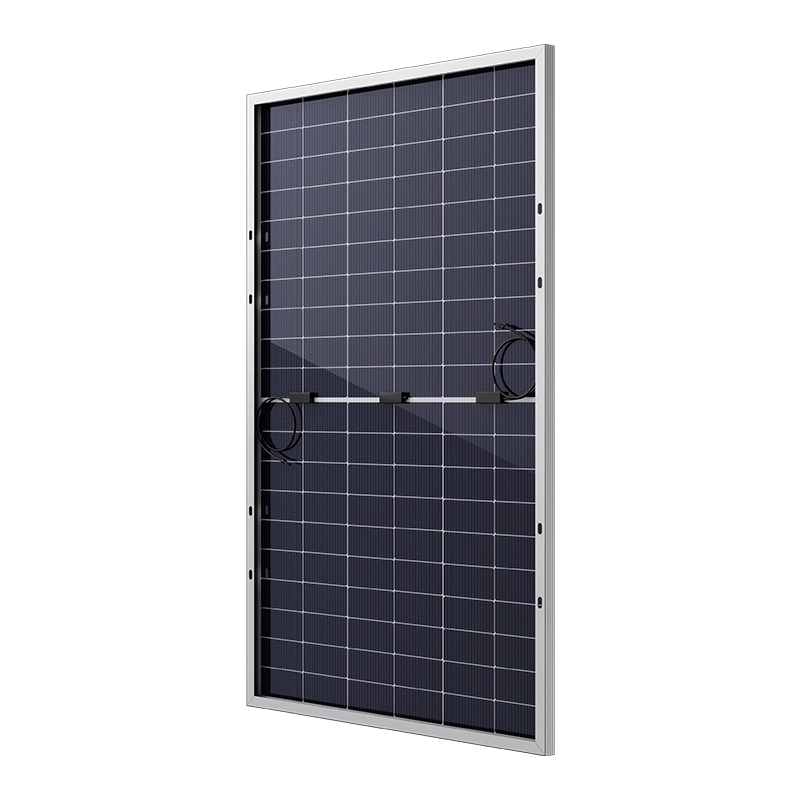

182mm 120Cells TOPCon 475-495W Bifacial Dual Glass Solar Panels

Share:

  • 1. Product Introduction​
    Our Premium 182mm N-Type TOPCon Bifacial Solar Panels are meticulously engineered. With 120 cells and power outputs of 480W or 495W, these monocrystalline bifacial dual-glass panels outperform conventional P-type modules, achieving a 10-30% higher energy yield and boasting an impressive 30-year lifespan.​

    2. Key Technological Advantages​
    The panels feature Zero LID Technology. N-type cells inherently prevent light-induced degradation, securing stable long-term output. The Advanced S-TOPCon 2.0 Design ensures full electrical isolation and zero leakage current, enhancing roof safety. These technological features are at the core of the panels' reliability and performance.​

    3. Exceptional Performance Characteristics​
    These solar panels showcase Superior Low-Light Performance, maintaining high efficiency even in cloudy or foggy conditions. Thanks to the Optimized Temperature Coefficient enabled by passivating contact technology, they exhibit better heat resistance and maintain excellent working performance under various temperature conditions.​

    4. Warranty and Assurance​
    We offer robust warranty protection. A 25-year material/processing warranty safeguards against manufacturing defects, while a 30-year linear power output guarantee assures consistent power generation over an extended period, providing customers with long-term peace of mind.​
Download Inquire

FAQS

Q :

What warranty is provided?

A :

30-year linear power warranty (guaranteeing 87.4% output at year 30) and 15-year product/material warranty.

Q :

Can it withstand extreme weather?

A :

Yes, the 2mm tempered glass withstands 5400Pa snow load and 2400Pa wind load, with IP68 junction box protection.

Q :

How does the frame design prevent corrosion?

A :

The anodized aluminum alloy frame features drainage holes and anti-accumulation design for long-term outdoor use.

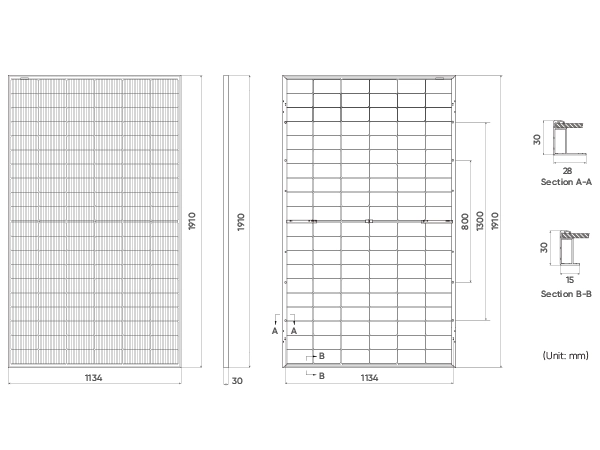

Mechanical Parameters

Layout120Cells (6×20)
Dimensions1910 x 1134 x 30mm
Weight26.0kg
Junction boxIp68 rated (3 by pass diodes)
Packaging36pcs/box, 216pcs/20'GP, 864pcs/40'HQ

Electrical Characteristics (STC*)

Module Type: MS-60HB475480485490495
Maximum power (Pmax/W)475480485490495
Open Circuit Voltage (Voc/V)43.4543.6043.7643.9144.06
Short Circuit Current (Isc/A)13.7713.8513.9314.0114.09
Voltage at Maximum power (Vmpp/V)35.8836.0636.2536.4336.62
Current Maximum Power (Impp/A)13.2413.3113.3813.4513.52
Module Efficiency (%)21.9322.1622.3922.6222.85

Bifacial Output-Rearsid Power Gain

5%Maximum Power (Pmax/W)499504509515520
5%Module Efficiency STC (%)23.0323.2723.5123.7524.00
15%Maximum Power (Pmax/W)546552558564569
15%Module Efficiency STC (%)25.2225.4925.7526.0226.28
25%Maximum Power (Pmax/W)594600606613619
25%Module Efficiency STC (%)27.4127.7027.9928.2828.57
  • 1. Standard Test Conditions [STC]: irradiance 1000W/m2; AM 1.5; ambient temperature 25°C according to EN 60904-3;
  • 2. Tolerance of Pm: 0~+5W, Measuring uncertainty of power: ±3%. Performance deviation of Voc [V], Isc [A], Vm [V] and Im [A]: ±3%.
